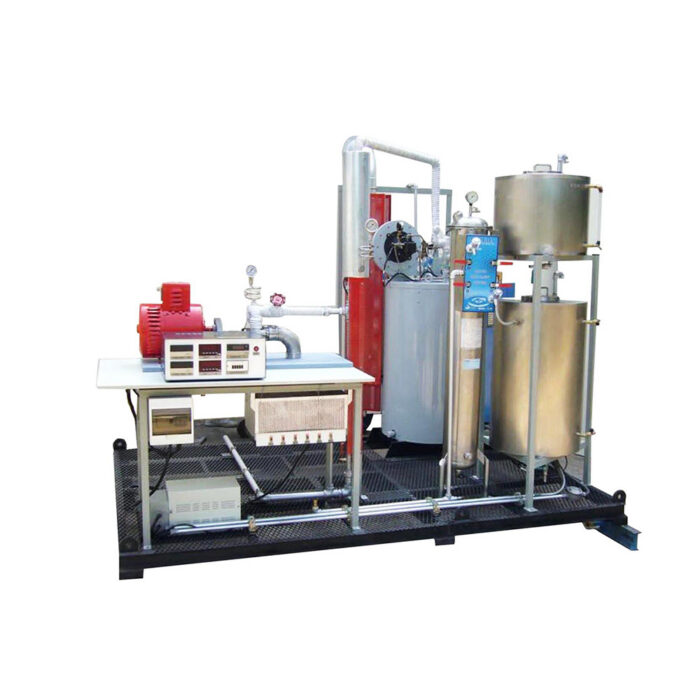

Compact Steam Turbine Power Plant 0.5 kW
The unit is designed to simulate modern steam power plant. Main components consist of a feed water system, a small industrial boiler, a steam turbine, a generator and lamp load, a condenser with a condensate tank and a pump, and a cooling tower. Accessories such as fuel tank, fuel flow meter, feed water meter, and a stack are also included. Instruments are provided for measurement of pressures, temperatures, output voltage and currents.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Measurement of feed water and fuel flow rates.
- Boiler efficiency, turbine generator efficiency, and overall power plant efficiency.
- Condenser heat transfer efficiency.
- Cooling tower efficiency.
TECHNICAL DATA
The boiler set consists of:
| A . Boiler Unit: | |
| – Type | Vertical, water tube |
| – Rated heat output | Approx. 63 kW (53,900 kcal/h) |
| – Equivalent evaporation | Approx. 100 kg/h steam |
| – Maximum working pressure | 10 kg/cm2 (0.98 MPa) |
| – Measuring instruments |
|
| – Safety devices |
|
| – Boiler accessories |
|
| Burner: | |
| – Type | Forced draft, pressure atomized |
| – Control | On-Off |
| – Fuel | Diesel or kerosene (LPG is available as an option.) |
| Fuel system | Stainless steel fuel tank, fuel strainer and fuel meter |
| Feed water system: | |
| – Resin filter for public water. | |
| – Soft water tank. | stainless steel |
| – Water meter for steam rate monitoring | |
| Power supply | 380 V, 3 Ph, 50Hz. Other power supply is available on request. |
| B . Steam Turbine | |
| – Type | Single stage, twin nozzle impulse turbine |
| – Maximum electrical output | Approx. 0.3 kW |
| Measuring instruments: | |
| – Speed sensor for turbine | |
| – Temperature sensors for steam inlet and outlet | |
| – Pressure gauge for steam inlet | |
| – Water manometer for turbine outlet | |
| C . Generator and Lamp Load | |
| Voltage | 220V, 1 Ph, 50 Hz. |
| Load lamps | 1 set. |
| Measuring instruments | |
| – Generator speed digital display | |
| – Voltage and current digital display | |
| D. Condenser and Cooling Tower | |
| TH 101-013 | Condenser
Description : The unit allows a study of heat transfer in a heat exchanger as well as recover condensate for reuse. |
| – Type | Steam tube |
| – Accessories and instruments |
|
| TH 135-014 | Cooling Tower
Description : This is an educational unit for recovering of condenser cooling water as well as |
| E . Software for data display and analysis by computer (separately supplied). |
