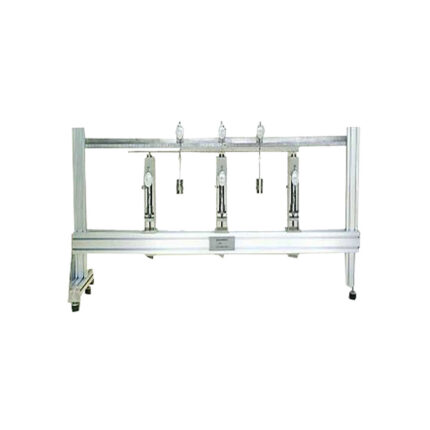

Strength and Property of MaterialsBeam Apparatus
This beam apparatus is of a universal design for use in a wide range of beam experiments with simple, built-in and sinking supports measuring of, point loads, support reactions and beam deflections.
The beam frame consists of a stainless steel angle upper cross member and two aluminum profile lower cross members, bolted to the support columns with footings. Three spring load cells with height adjustment and a cantilever support can slide along the lower members and can be clamped at any point. Dial indicators can slide along the upper member and can be clamped at any point. Linear scale is attached to the upper member to indicate the positions of load cells, loads, supports and dial indicators. Load cell, weight hangers and dial gauges carriers have pointers to indicate their positions on the scale.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Deflection of beams with two supports and various point loads.
- Determination of flexural rigidity and elastic modulus.
- Verification of static equilibrium.
- Verification of the bending equation M/I = E/R
- Beams with sinking supports. Statically indeterminate beam with different loadings and supports.
TECHNICAL DATASupporting frame Aluminum profile and stainless steel angle 1400 mm. long ST 124 Vertical force spring support 3 ST 112 Built-in knife edge support 1 Weight hangers 4 Weights 1 lot Beam length 1200 mm Beam materials – Mild steel 3 – Aluminum and brass 1 Dial indicators 3x 0-20 mm range, 0.01 mm graduation Software for data display and analysis by computer (separately supplied) (0 reviews) -

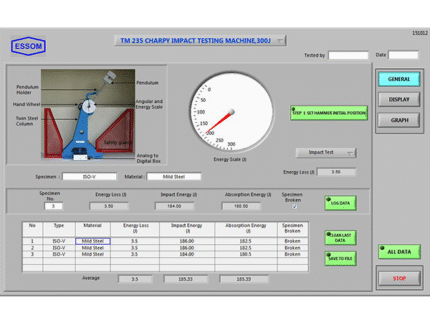

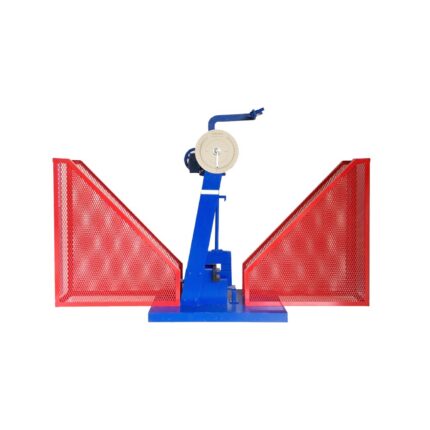

Strength and Property of MaterialsCharpy Impact Testing Machine 150/300 J
The impact testing machine is for determination of resistance to fracture of materials by Charpy test based on DIN50115 and DIN51222.
The machine is constructed with a heavy base and single support column. The pendulum is hung on ball bearings. Manual lifting of hammer is by two stage reduction gear. Hammer weight can be reduced for lower capacity with smaller graduation. A pendulum mechanical brake and safety guard are also provided.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Determination of notched bar impact work.
- Determination of notched bar impact strength.
- Influence of notch form on impact work.
- Influence of materials heat treatment, and temperature on impact work.
TECHNICAL DATACapacity 150 and 300 Joules Scale graduation 1 and 2 Joule Lift angle of hammer 145o Striking velocity 5.378 m/s Software for data display and analysis by computer (separately supplied). (0 reviews) -

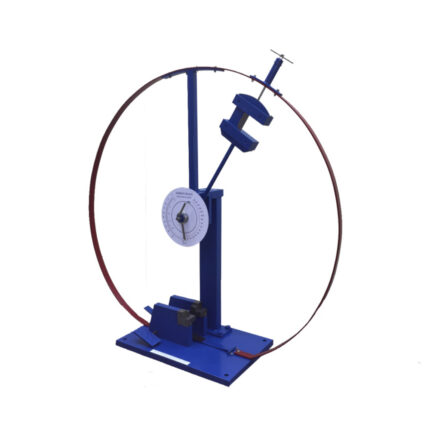

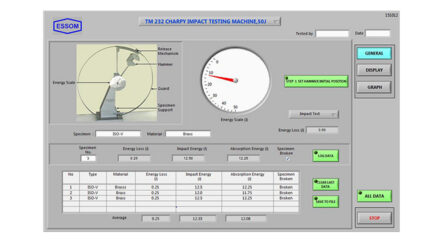

Strength and Property of MaterialsCharpy Impact Testing Machine 25/50 J
This Charpy’s impact tester machine is designed for determination of resistance to fracture of materials by charpy test based on DIN51222.
The machine is constructed with a heavy base and support columns. The pendulum is hung on ball bearings. A pendulum brake and safety guard are also provided.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Determination of notched bar impact work.
- Determination of notched bar impact strength.
- Influence of notch form on impact work.
- Influence of materials heat treatment, and temperature on impact work.
TECHNICAL DATACapacity 25 and 50 Joules Scale graduation 0.25 and 0.5 Joule. Lift angle of hammer 145o Striking velocity 3.825 m/s Software for data display and analysis by computer (separately supplied). (0 reviews) -

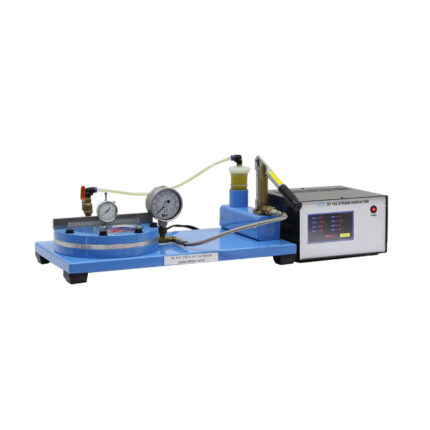

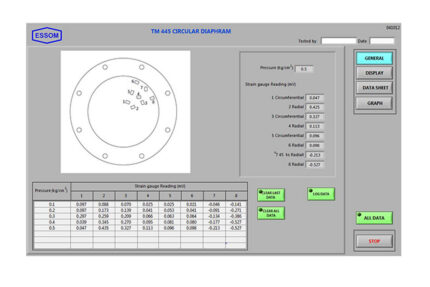

Strength and Property of MaterialsCircular Diaphragm
The equipment is used for studying the stress and deflection of a thin diaphragm.
The circular aluminum alloy diaphragm is clamped around its edge by two heavy steel flanges. Internal pressure is applied to the diaphragm by a hydraulic hand pump. Pressure in the diaphragm is indicated on a pressure gauge. A dial gauge is fitted onto a cross bar to measure the diaphragm surface profile. Scale on the cross bar indicates the dial gauge position.
Strain gauges are of the same gauge factor and the gauges are fitted onto the diaphragm at different angles and radii. Each strain gauge is wired to form a full bridge with temperature compensation gauge and zero adjustment in a bridge box with strain gauge indicator.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Deflection of circular diaphragm under pressure
- Strains on the diaphragm surface under pressure
TECHNICAL DATADiaphragm : – Effective diameter 200 mm – Maximum internal pressure 60 kN/m2 Pressure gauge 1 kg/cm2. Number of strain gauges 8 ea. Dial gauge 0-20 mm x 0.01 mm graduation Strain indicator 8 channels Software for data display and analysis by computer (separately supplied). Power supply 220V, 1 Ph, 50Hz. Other power supply is available on request. (0 reviews) -

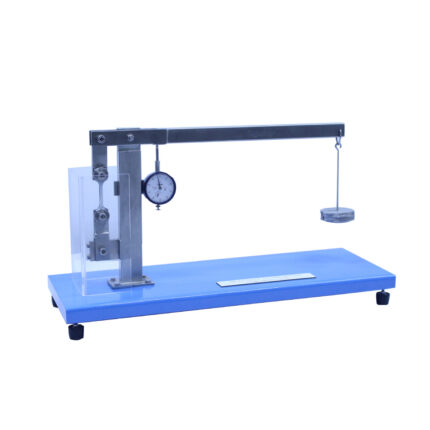

Strength and Property of MaterialsCreep Testing Machine
This equipment is used for testing materials with high creep such as lead and plastics.
A lever is pivoted to a column via ball bearing. Specimen is attached to one end of the lever while load is applied on the other end. Specimen extension is measured by a dial indicator. A glycol pack is provided to wrap the specimen and maintain the required test temperature.
Instruction manual is also included.
TYPICAL EXPERIMENTSCreep phenomena of materials under different stresses and temperatures.
TECHNICAL DATALever ratio 8:1 Specimen enclosure Clear acrylic Weights 1 lot. Dial indicator 10 mm x 0.01 mm graduation. Thermometer -10 to 50๐C Glycol pack Software for data display and analysis by computer (separately supplied). (0 reviews) -

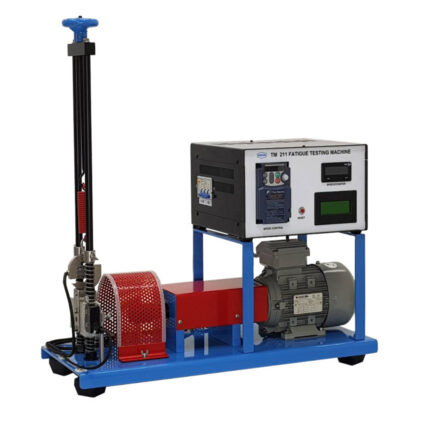

Strength and Property of MaterialsFatigue Testing Machine
This equipment is used for studying the effects of fatigue using a rotating cantilever specimen.
A spindle specimen is attached to one end of a rotating shaft held to the base by self aligned bearings. Load is applied on the spindle producing a sinusoidal bending stress. Digital revolution counter keeps account of the number of revolution when failure occurs. A limit switch is provided to stop the rotation when specimen fails.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Influence of bending stress.
- Influence of different radii at fracture section.
- Wohler diagram.
TECHNICAL DATAMotor 0.37 kW, 2750 rpm (approx.) Revolution counter 8 digits Loading mechanism Spring balance Software for data display and analysis by computer (separately supplied). Power supply 220V, 1 Ph, 50 Hz. Other power supply is available on request. (0 reviews) -

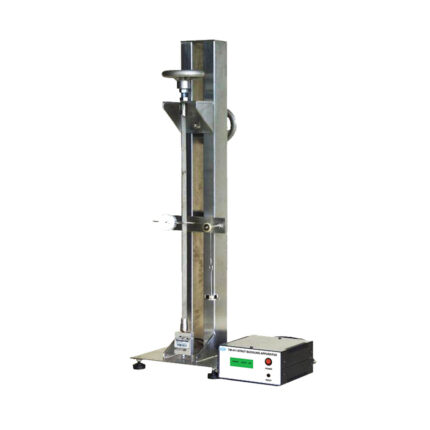

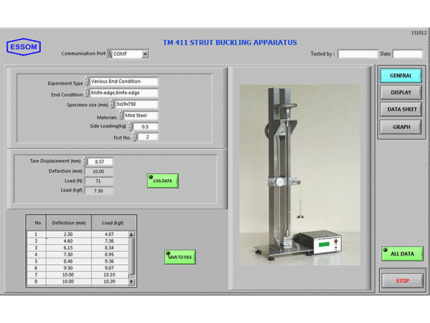

Strength and Property of MaterialsStrut Buckling Apparatus
This bench top apparatus is used for studying buckling on struts under various end conditions.
The apparatus consists of two vertical columns where load is applied by a screw via a sliding support. Strut support for knife edge or built-in is a cylinder in a socket. Each strut has end conditions for knife-edge or built-in. Load on the strut is measured by a load cell and deflection is measured by a dial gauge. Side loading is by a weight hanger and weights. Height of loading beam is adjustable to accommodate different strut lengths.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Determination of flexural rigidity and comparison with theoretical value.
- Determination of flexural rigidity under different end conditions.
- Determination of load VS deflection and crippling loads for strut of different lengths and cross sections.
- Effects of side load and eccentric loading.
TECHNICAL DATABasic frame 2 columns and sliding cross member with loading screw. Maximum strut length 750 mm Load measurement Force digital display Dial gauge 0-20 mm. x 0.01 mm. graduation. Weight hanger Weights 1 lot. Strut supports - 2 Knife edges
- 2 Built-in
Struts specimens with knife edge ends: – Mild steel 6 ea.,different lengths. – Aluminium and brass - Thickness (approx.) 6 mm, Width (approx.) 20 mm,
- Length: 750 mm
Software for data display and analysis by computer (separately supplied). Power supply 220V, 1Ph, 50Hz. Other power supply is available on request. (0 reviews) -

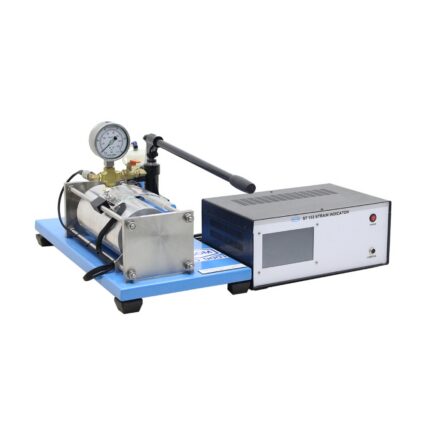

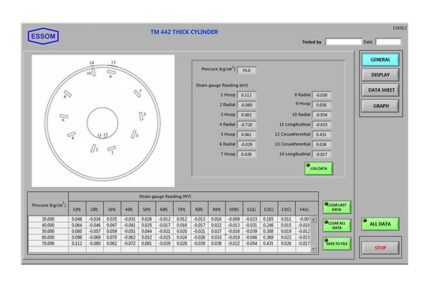

Strength and Property of MaterialsThick Cylinder
The equipment is used for studying a stress profile in the wall of a thick cylinder.
Two halves of thick aluminum alloy cylinders are cemented and clamped together. A hand operated hydraulic pump transmits pressure to the inside of the cylinders via the clamping bolt. The pressure is indicated by a pressure gauge. Strain gauges are of the same gauge factor and the gauges are attached radially and circumferentially along the wall thickness and filled with jointing material. Additional strain gauges are attached on the inside and outside surfaces of the cylinder. Each strain gauge is wired to form a full bridge with temperature compensation gauge and zero adjustment in a bridge box with strain gauge indicator.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Measurement of strains, hence stresses, along the cylinder wall thickness.
- Comparison of the actual strain readings with theoretical values.
TECHNICAL DATACylinder – Length 300 mm – Outside diameter 150 mm – Maximum internal pressure 7 N/mm2 Pressure gauge 100 kg/cm2. Number of strain gauges 14 ea. Strain indicator 16 channels Software for data display and analysis by computer (separately supplied). Power supply 220V, 1 Ph, 50 Hz. Other power supply is available on request. (0 reviews) -

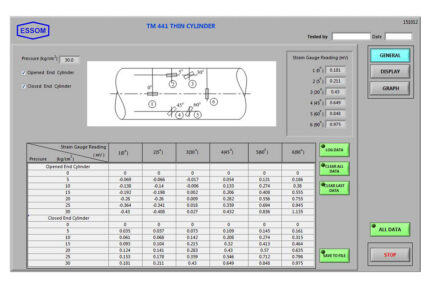

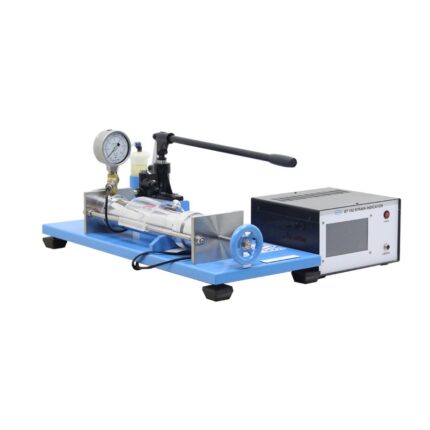

Strength and Property of MaterialsThin Cylinder
This equipment is used for studying the stresses in a thin wall cylinder.
A thin wall aluminum alloy cylinder is mounted on a rigid steel frame. Internal pressure is applied to the cylinder by means of a hydraulic hand pump with oil reservoir. Pressure in the cylinder is indicated on a pressure gauge. A hand wheel is attached to one end of the frame to operate a piston on one side of the cylinder. By applying the hand wheel, the piston can open or close the cylinder. When the cylinder is open, only circumferential stress occurs on the cylinder. When the cylinder is closed, both circumferential and axial stresses occur. Strain gauges are of the same gauge factor and the gauges are fixed onto the cylinder at different angles. Each strain gauge is wired to form a full bridge with temperature compensation gauge and zero adjustment in a bridge box with strain gauge indicator.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Measurement of strains and stresses under internal pressures.
- Determination of Young’s modulus a Poisson’s ratio.
- Comparison of theoretical stresses and strains with experimental values.
TECHNICAL DATACylinder – Length 360 mm – Outer diameter 80 mm – Maximum internal pressure 3.5 N/mm2 Pressure gauge 50 kg/cm2. Strain gauges 6 ea. at different angles. Strain indicator 8 channels Software for data display and analysis by computer (separately supplied). Power supply 220V, 1 Ph, 50Hz. Other power supply is available on request. (0 reviews)
