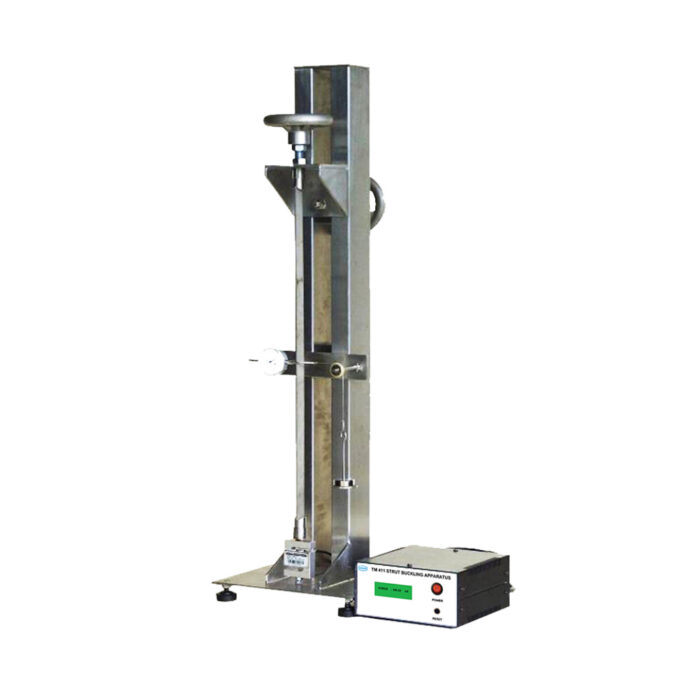

Strut Buckling Apparatus
This bench top apparatus is used for studying buckling on struts under various end conditions.
The apparatus consists of two vertical columns where load is applied by a screw via a sliding support. Strut support for knife edge or built-in is a cylinder in a socket. Each strut has end conditions for knife-edge or built-in. Load on the strut is measured by a load cell and deflection is measured by a dial gauge. Side loading is by a weight hanger and weights. Height of loading beam is adjustable to accommodate different strut lengths.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Determination of flexural rigidity and comparison with theoretical value.
- Determination of flexural rigidity under different end conditions.
- Determination of load VS deflection and crippling loads for strut of different lengths and cross sections.
- Effects of side load and eccentric loading.
TECHNICAL DATA
| Basic frame | 2 columns and sliding cross member with loading screw. |
| Maximum strut length | 750 mm |
| Load measurement | Force digital display |
| Dial gauge | 0-20 mm. x 0.01 mm. graduation. |
| Weight hanger | |
| Weights | 1 lot. |
| Strut supports |
|
| Struts specimens with knife edge ends: | |
| – Mild steel | 6 ea.,different lengths. |
| – Aluminium and brass |
|
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220V, 1Ph, 50Hz. Other power supply is available on request. |
