Column Buckling

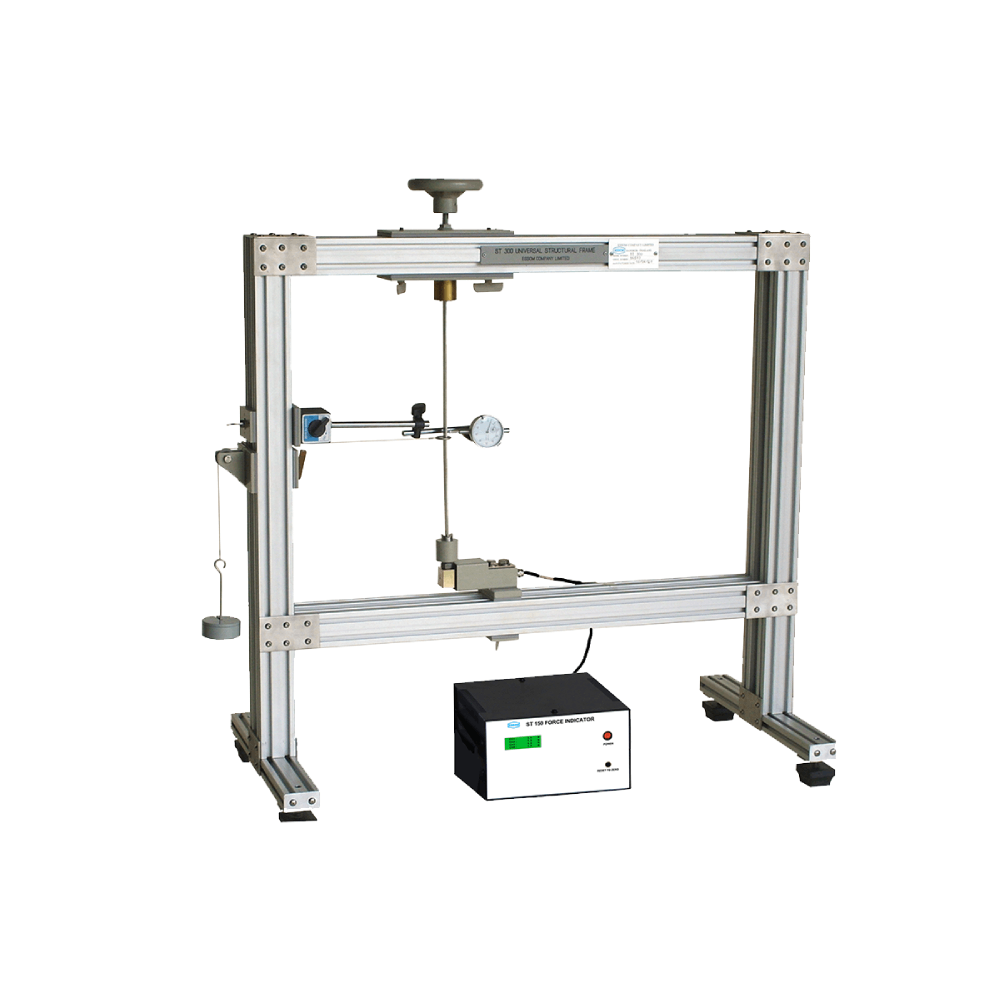

The equipment is used for studying strut buckling under load. It is to be used with ST300 Universal Structural Frame (separately supplied).
The top frame has a loading screw which pushes a cylindrical strut support sliding in a bushing. The bottom frame has a load cell and a cylindrical strut support in a socket.
Each strut has end conditions for knife-edge or built – in. The load reading is by an indicator. A small lateral load is applied by means of a pulley and a weight hanger. A dial indicator measures the lateral deflection.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Euler buckling loads
- Relationship between strut length and collapse load
- Relationship between various end-fixing conditions and collapse load
- Nature of deflection and deflected shapes with various end-fixing conditions
TECHNICAL DATA
| Top support with a loading screw | |
| Bottom support with a load cell | 1 |
| ST150 Force indicator | 1 |
| Strut specimens: | |
| – Materials | Mild steel, brass, aluminum |
| Strut supports: | |
| – Built in | 2 |
| – Knife – edges | 2 |
| Horizontal load hanger set | 1 |
| Pulley set | 1 |
| Hanger slider | 1 |
| Cord | 1 |
| Weights | 1 lot |
| ST131 Dial indicator | 1 |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220 V, 1 Ph, 50Hz. |
