Ground Water Flow Apparatus

This apparatus is for studying the hydrological principles of ground water flow and application of the flow to certain engineering constructions.

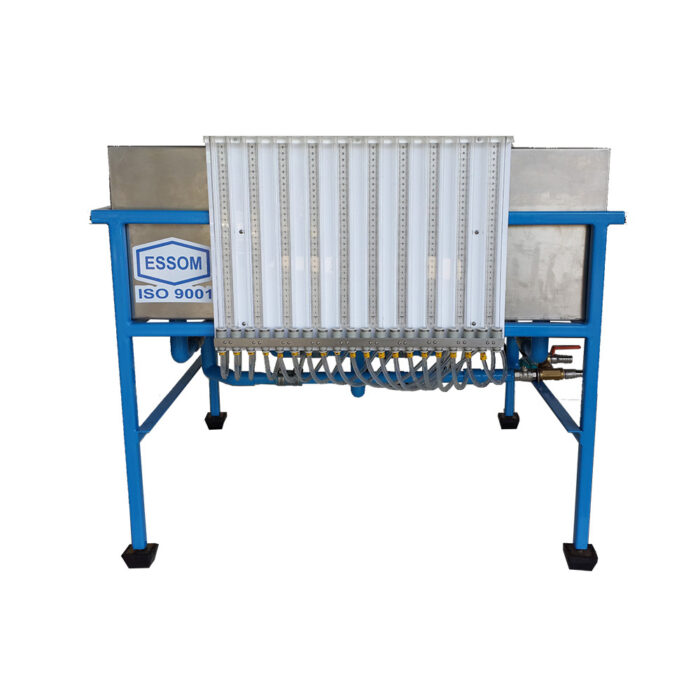

The apparatus consists of a square stainless steel sand tank supported on epoxy painted steel frame. Two horizontal water inlet pipe diffusers are installed at both ends of the sand tank. Two vertical outlet wells are installed next but interior to the inlet diffusers. Both inlet and outlet are controlled by valves to produce various water flow tables and flow rates.

Nineteen tappings with special filter at the base of the tank arranged in orthogonal axes are connected to a manometer at the side of the tank to indicate ground water levels. Outside water supply in required.

Instruction manual is also included.

  • Hydraulic profile between inlet and outlet.
  • Profile with one outlet.
  • Profile with two outlets.
  • Profile with concentric cove.
  • Profile with square ditch.
Tank dimensions approximately 100 cm long x 50 cm wide x 30 cm deep
Inlet pipes and outlet wells 2 ea.
Manometer 19 tubes.
Models Small square, large square, concentric cove.
Software for data display and analysis by computer (separately supplied).
