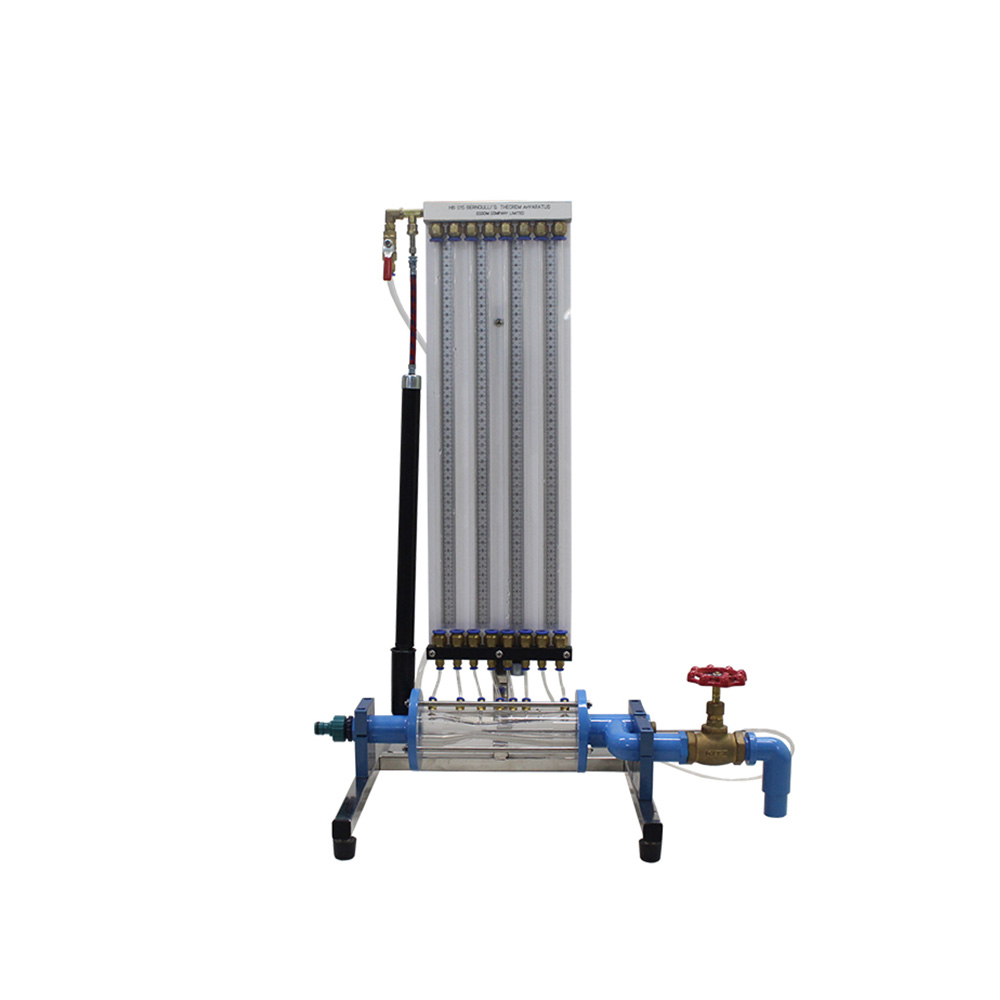

Bernoulli’s Theorem Apparatus
Bernoulli’s theorem is applied on flow through a clear acrylic Venturi tube. The apparatus is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied).
Static pressures at various points along the wall of a transparent Venturi tub are directly measured on a manometer equipped with a vent valve and a hand air pump. A movable stainless steel total head probe is also provided. Flow through the Venturi tube is controlled by a valve at the outlet. As a primary flow measuring device, coefficient of discharge for the Venturi tube can also be determined.
TYPICAL EXPERIMENTS
- Application of the Bernoulli equation
- Measurement of the meter coefficient of discharge at various flow rates
- Comparison of experimental results with theoretical predictions
TECHNICAL DATA
| Diameters | 28 mm inlet. | |
| Taper | Upstream 21°, Downstream 10° | |
| Water manometer | 8 tubes. | |
| Total head probe | 1 ea. | |
| Software for data display and analysis by computer (separately supplied). | ||
