Additional information
| Brand | Intelitek |
|---|

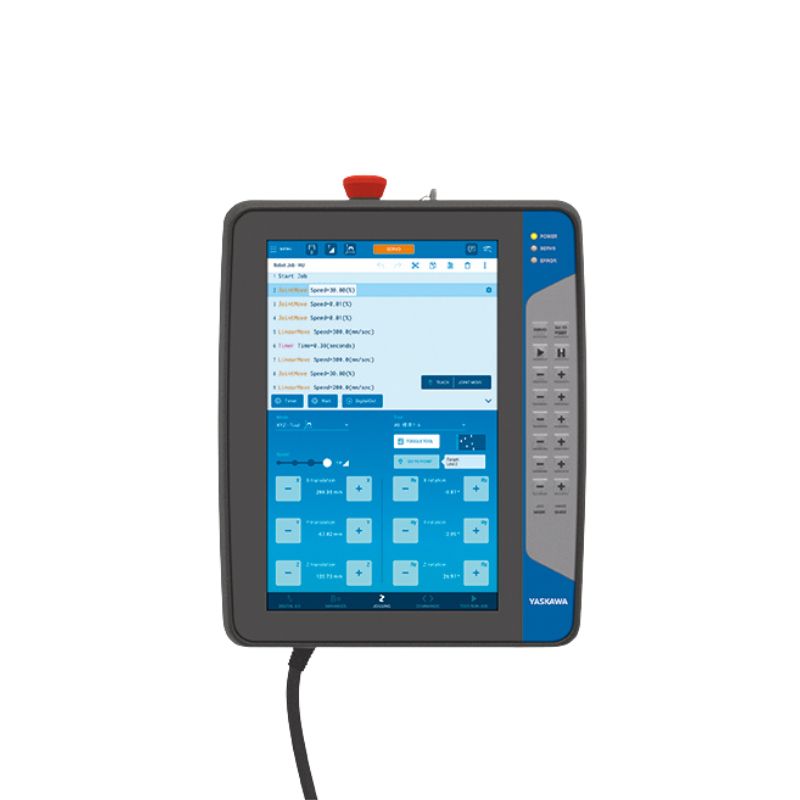

Yaskawa Smart Pendant
Radically Change the Way a Robot is Programmed
Ideal for all robot users, novice and experience, the easy-to-use touchscreen Smart Pendant simplifies INFORM programming for easy-to-understand operation and fast implementation of the robot system. The Smart Pendant’s intuitive Human Machine Interface (HMI) adapts to the programmer’s style, and the built-in Smart Frame feature allows the robot to adapt to the operator’s position, eliminating the utilization of coordinate frames and allowing for easy robot jogging. Smart Pendant is included with all Smart Series robots.
- Fast, simple learning curve
- Easy troubleshooting and error recovery
- Easy-to-understand operation; intuitive format
- Simplified INFORM programming supports powerful controller functionality
| Smart Pendant Specifications | |
| Dimensions | 215 (W) x 283 (H) x 68.5 (D) mm 8.5” (W) x 11.1” (H) x 2.7” (D) |
| Pendant Display | 10.1” WXGA TFT Display 1280 x 800 pixels LED back light touch panel |
| Pendant Weight | 1.12 kg / 2.5 lbs |
