Charpy Impact Testing Machine 25/50 J
Charpy Impact Testing Machine for measuring material fracture resistance, impact work, impact strength, and effects of notch shape and heat treatment.
Description

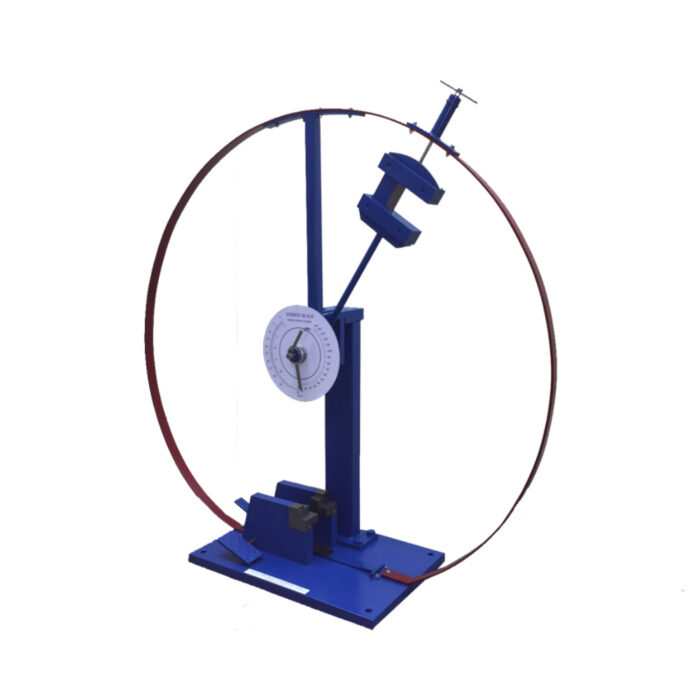

Charpy Impact Testing Machine 25/50 J. This Charpy’s impact tester machine is designed for determination of resistance to fracture of materials by charpy test based on DIN51222.
The machine is constructed with a heavy base and support columns. The pendulum is hung on ball bearings. A pendulum brake and safety guard are also provided.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Determination of notched bar impact work.
- Determination of notched bar impact strength.
- Influence of notch form on impact work.
- Influence of materials heat treatment, and temperature on impact work.
TECHNICAL DATA
| Capacity | 25 and 50 Joules |
| Scale graduation | 0.25 and 0.5 Joule. |
| Lift angle of hammer | 145o |
| Striking velocity | 3.825 m/s |

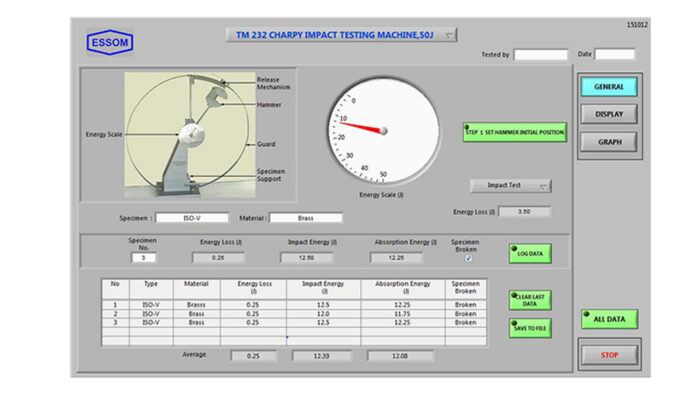

| Software for data display and analysis by computer (separately supplied). | |
Explore more engineering education products on our website at www.LABTS.co.id
Additional information
| Brand |
Essom |
|---|
