Additional information
| Brand | Essom |
|---|

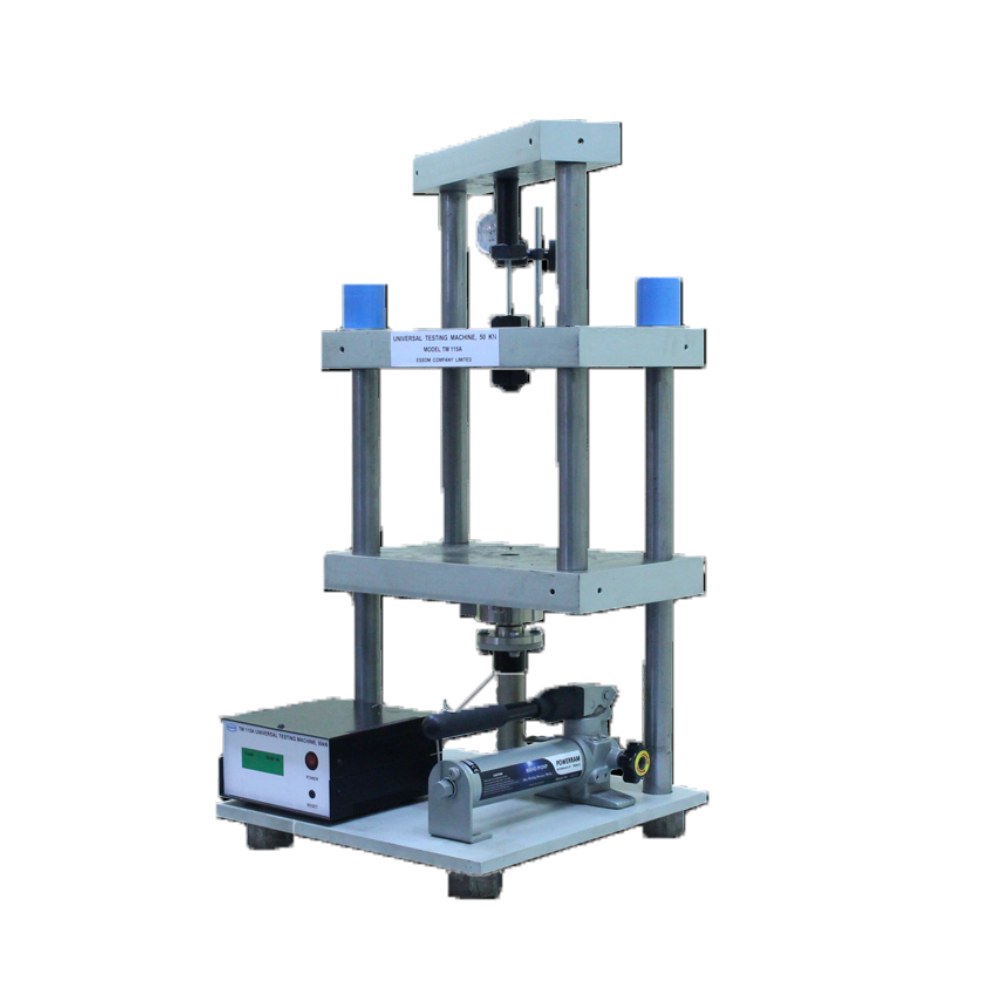

Universal Testing Machine, 50 kN
This is a bench top educational machine for tension, compression, bending, shear and Brinell hardness tests of materials.
The machine has four columns in two planes. Load application is by a hand operated hydraulic jack with measuring instruments for load and deflection.
Test accessories and specimens are available as optional items.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Tension
- Compression
- Bending
- Deep draw
- Shear
- Brinell hardness
- Spring compression
TECHNICAL DATA
| Capacity | 50 kN. |
| Maximum crosshead travel | 50 mm |
| Measuring instruments | |
| – Load | Force digital display |
| – Extension | Dial indicator 0-20 mm x 0.01 mm. graduation with magnetic holder |

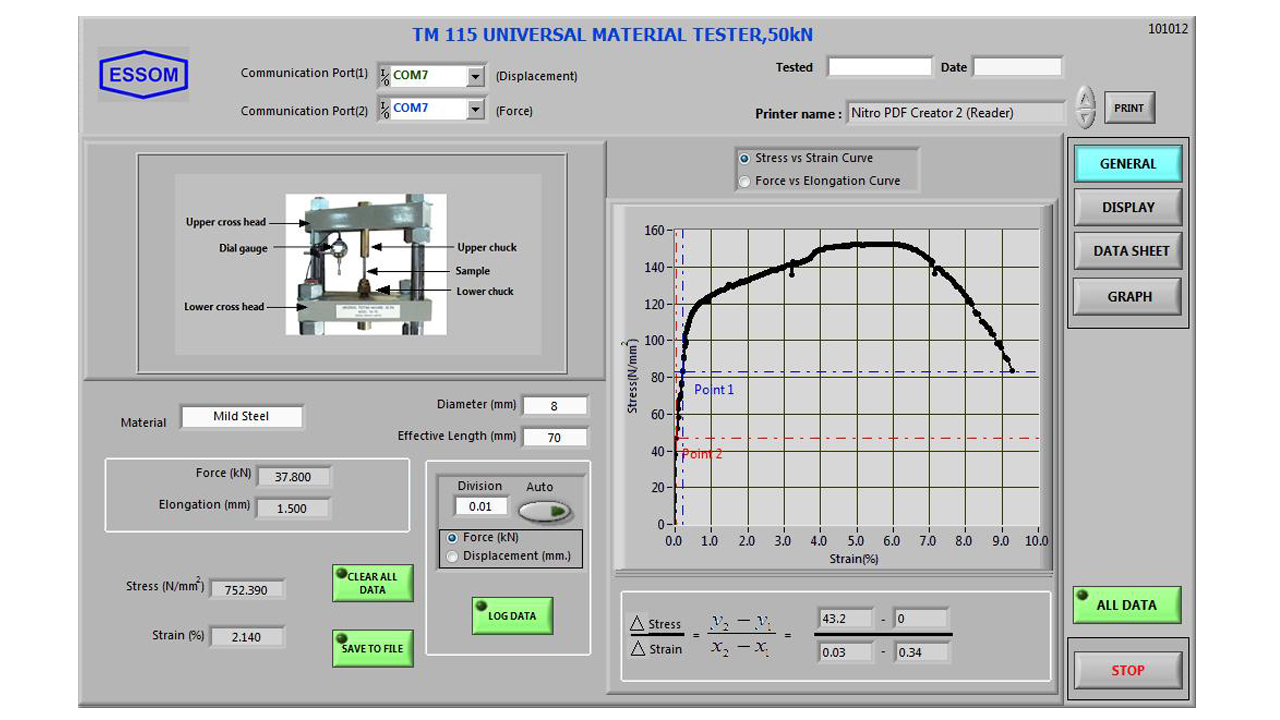

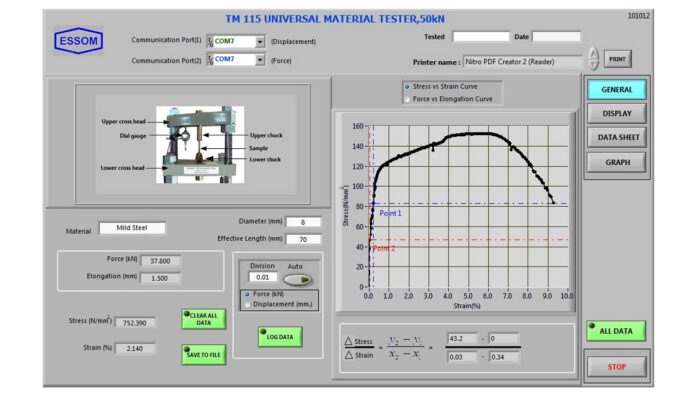

| Software for data display and analysis by computer (separately supplied). | |
| Power supply (optional version) | 220V, 1 Ph, 50 Hz. Other power supply is available on request. |
