Electric Circuits

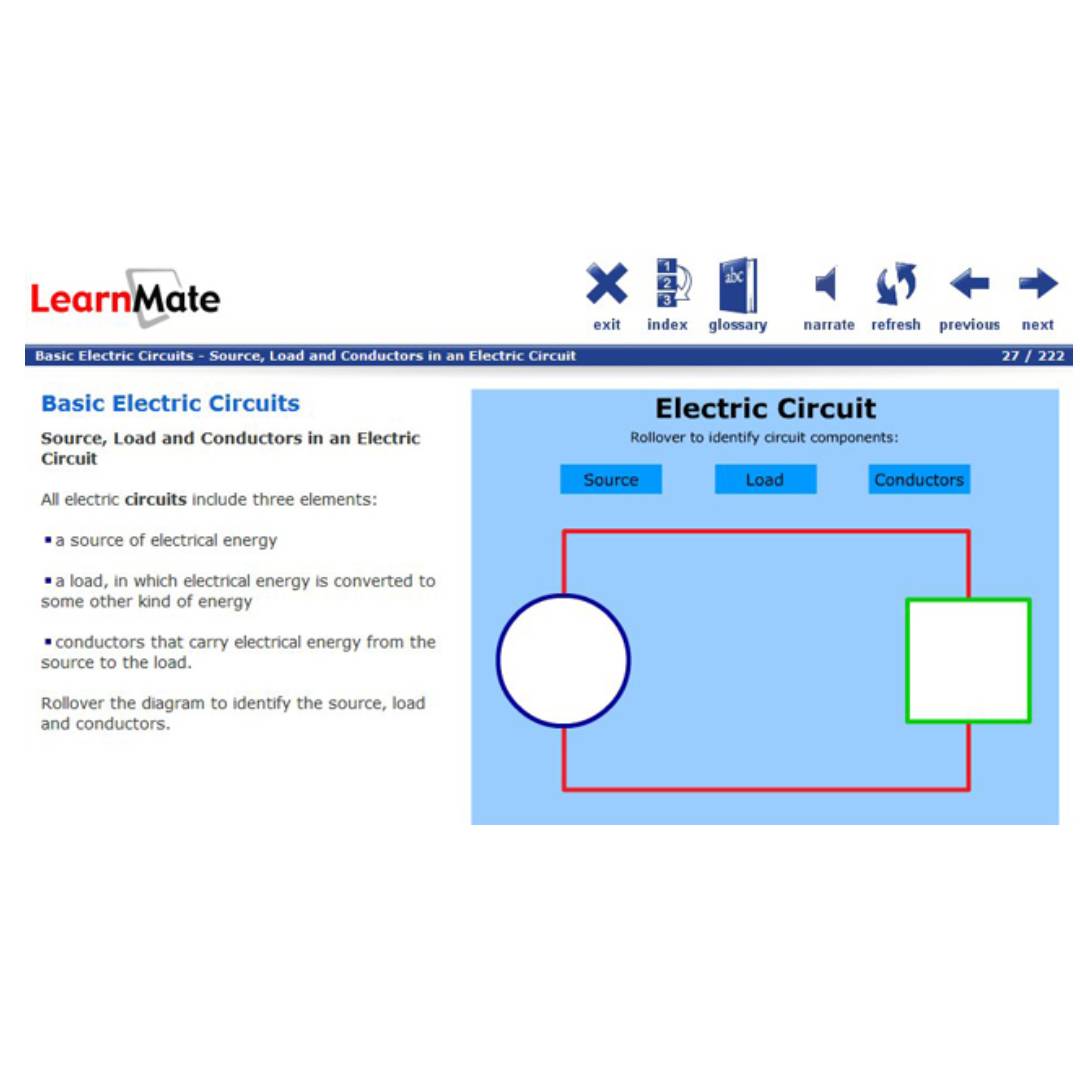

EA01A: Electric Circuits features skills-based curriculum and hands-on activities with industrial-grade components. Students build a solid foundation in electrical circuits.

EA01A: Electric Circuits delivers the skills needed for success in industrial maintenance careers, including:

Lockout/tagout & safety procedures
Connecting an electric circuit
Measuring voltages and currents in an electric circuit
Testing power sources like batteries, thermocouples and PV cells

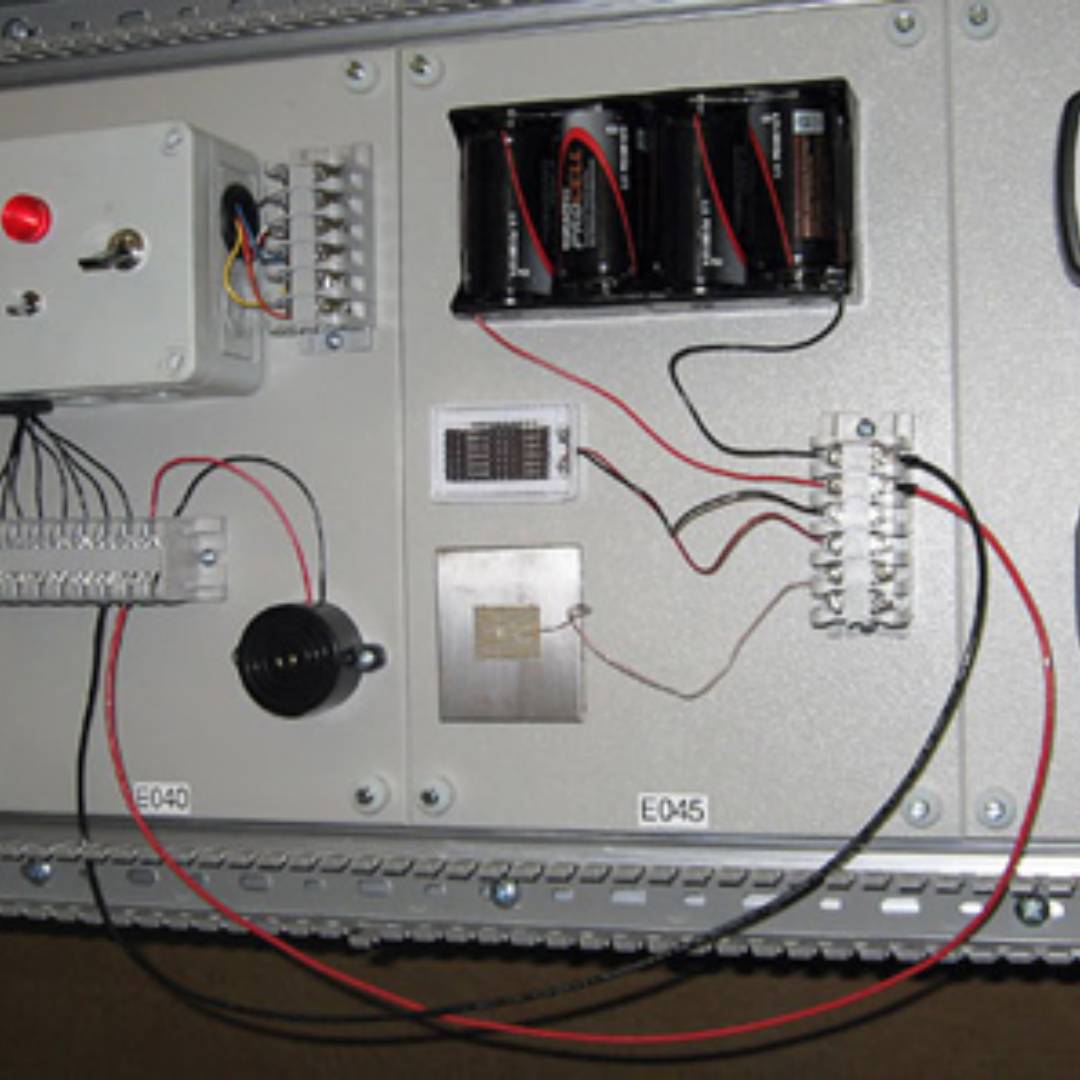

Flexponent panels:
E040: Switch, Lamp and Buzzer Panel
E045: Sources of Electricity Panel
E047: Heat/Light Source Panel
E151: Series/Paralell Lamp Panel
E152: Transformer/Adjustable Power Panel
Digital Multimeter (Fluke Model 115 or equivalent)


(sold separately)

JobMaster Learning Station
Power Control Panel: PC04 (120V)
Each JobMaster module includes the listed hardware and panels to add to your JobMaster Training station, as well as skills-based curriculum.

All modules require a JobMaster Training Station, sold separately.
Some modules also require hardware and/or panels purchased as part of prerequisite skill blocks in the same series, as noted on each product data sheet.

Skills Acquired

Skill 1: Lockout/Tagout
Skill 2: Connecting a Basic Circuit
Skill 3: Identifying Switches
Skill 4: Connecting a Momentary Switch
Skill 5: Connecting a Toggle Switch
Skill 6: Identifying Sources of Electricity
Skill 7: Measuring DC Voltage
Skill 8: Constructing a Series Circuit
Skill 9: Constructing a Parallel Circuit
Skill 10: Applying DC Voltage Principles
Skill 11: Testing an Electrolytic Cell
Skill 12: Testing a Battery
Skill 13: Testing a Thermocouple
Skill 14: Testing a Solar Cell
