Relays, Timers and Time Delay Relays
Relays, Timers & Time Delay Relays delivers hands-on skills in installing, programming and maintaining control devices used in industrial electric circuits.

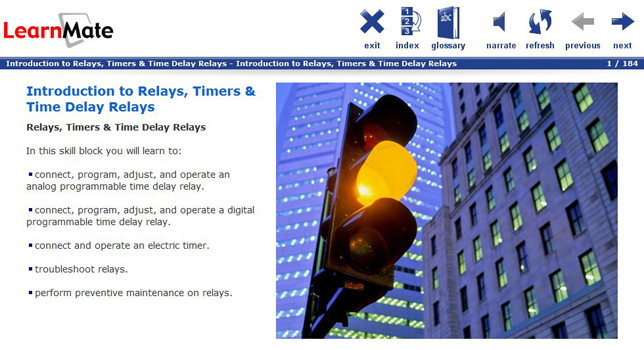

Relays, Timers & Time Delay Relays delivers hands-on skills in installing, programming and maintaining control devices used in industrial electric circuits. Relays, Timers & Time Delay Relays is an add-on to Electromagnetic Motor Starters (EA07), covering eight additional skills including:
- Connecting and Programming Analog On-Delays and Off-Delay Relays
- Using Digital Relays and Motors
- Troubleshooting Relays
- The skills-based curriculum presents hands-on activities using a digital relay and an electronic timer mounted on the two included Flexponent® panels which attach to the JobMaster® Learning Station (not included). Panels are easily added and exchanged allowing the workspace to be re-configured as multiple students progress through the course.
Included
- E-Learning Course and Teachers Guide
Flexponent® panels:
- E017 – Digital Relay Panel
- E041 – Electric Timer Panel
Materials required (sold separately):
JobMaster® Learning Station
Power Control Panel (220V) 3-Phase
Prerequisite Courses
Electromagnetic Motor Starters (EA07)
Course Outline
Skills Acquired
Skill 1: Measuring Resistance
Skill 2: Measuring Resistance in Series Circuits
Skill 3: Measuring Resistance in Parallel Circuits
Skill 4: Drawing and Reading Resistor Symbols
Skill 5: Testing an Adjustable Resistor
Skill 6: Measuring Wire Size
Skill 7: Applying Resistance and Wire Size
Skill 8: Calculating Wire Size
Skill 9: Determining Losses in a Conductor
