  Electro-Magnetic Motor Starters

  Electromagnetic Motor Starters (EA07) guides students through hands-on activities using industrial motor controls. From wiring motor control circuits to troubleshooting, students gain practical experience in all aspects of industrial motor control, including testing and resetting
  overload protection, operating a three-phase reversing starter and troubleshooting a three-phase motor control circuit.

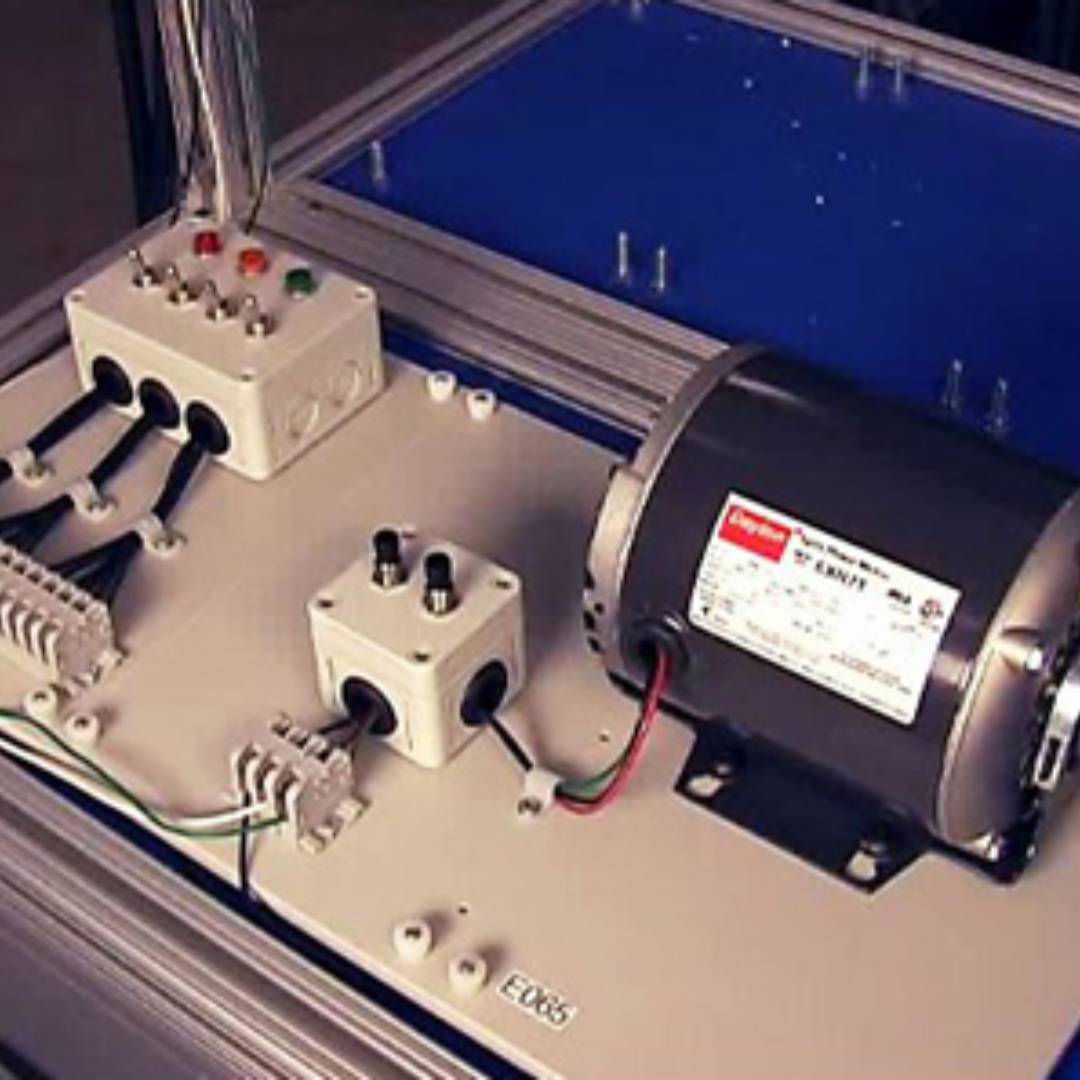

  The skills-based curriculum presents eight critical skills using industrial magnetic starters, relays, and START-STOP motor control components mounted on six included Flexponent™ panels which attach to the JobMaster Learning Station (not included). Panels are easily added and exchanged allowing the workspace to be re-configured as multiple students progress through the course. Core concepts are taught through self-paced e-learning curriculum. All the necessary resources, including printable instructions, wiring diagrams and troubleshooting charts, are available online, ready for use at the JobMaster Learning Station. Instructors are also provided comprehensive resources, including a detailed instructors’ guide. Teachers’ versions of schematics and wiring diagrams as well as tips and tricks are all one click away.

  With JobMaster, you can be sure your training program will deliver the skills needed for success in automated manufacturing careers!

  Included

  Materials Included
  Order #14-EA07:
  Electromagnetic Motor Starters (EA07) E-Learning
  Curriculum and Teachers’ Guide
  Flexponent‚Ñ¢ panels:
  E002 START-STOP Control Panel
  E004 Single Magnetic Starter Panel
  E005 START-REVERSE-STOP Switch Panel
  E006 Reversing Magnetic Starter Panel
  E010 Three-Phase Motor Panel
  E012 Transformer Panel
  E016 Analog Relay Panel
  E154 Lamps and Switches Panel
  E155 HOA Switch Panel

  Requirement (sold separately)

  JobMaster Learning Station Order #10-LS00-0200
  Power Control Panel (220V) 3-Phase Order #10-PC06-0000
  DMM (Fluke Model 115 or equivalent)

  Course Outline

  Skills Acquired

  Skill 1 Connecting a Control Relay Seal-In Circuit
  Skill 2 Connecting, Adjusting, And Operating a Single Magnetic Starter
  Skill 3 Testing and Resetting Overload Protection
  Skill 4 Connecting, Adjusting, and Operating a Three-phase Reversing Starter
  Skill 5 Connecting and Operating a Magnetic Starter
  for Jogging
  Skill 6 Troubleshooting a Three-phase Motor Control Circuit
  Skill 7 Troubleshooting a Reversing Three-phase Motor Control Circuit
  Skill 8 Performing Preventive Maintenance on
  Magnetic Starters
