Force Measurement System

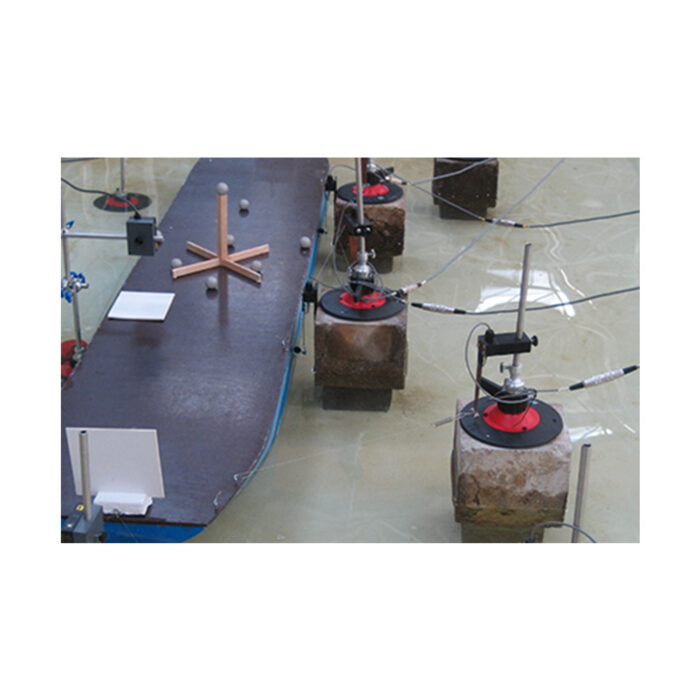

Our force measurement system models the forces on ship mooring lines and fenders in a variety of sea states.
The simplicity of operation together with bespoke data analysis software make these devices the ideal choice for all physical modelling requirements.
Our force measurement system includes:
- 2 x fender force transducers
- 6 x mooring line transducers
- 8 x 40m extension cables
- 1 x 8-channel conditioning with analogue output unit
Key features
- Options for ship fender and mooring line applications
- Range of springs supplied for mooring lines to give non linear responses
- Strain gauge range 0-5N
- Simple to install and operate
- Made from corrosion resistant materials
- Operates with HR DAQ
