Hydrostatics Pressures

This equipment allows the moment caused by a fluid thrust on a wholly or partially submerged plane surface to be measured directly.

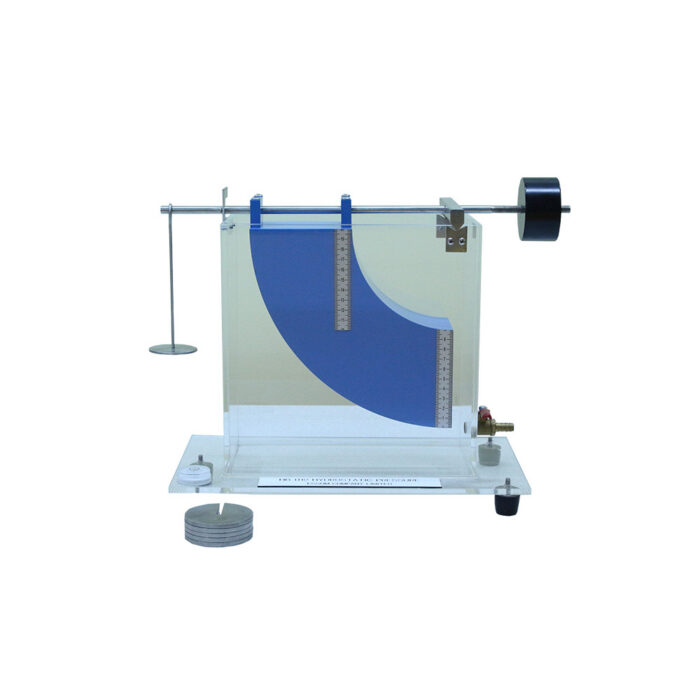

A PVC quadrant is mounted on a balance arm pivoted on knife edges which coincide with the quadrant center. When the quadrant immerses in water, there are hydrostatic forces. The balance arm has an adjustable counter balance and weights with a hanger. The quadrant is mounted on top of a clear acrylic tank which allows water to be admitted and drained to a required level by a valve. The tank rests on adjustable footings and a bull’s eye level is provided.

TYPICAL EXPERIMENTS
  • Visual demonstration of the Shear Force and Bending Moment at a cut section in a beam
  • Determination of the Centre of Pressure
TECHNICAL DATA
Quadrant Inner radius 100 mm
Outer radius 200 mm
Width 75 mm
Weights 1 lot.
Software for data display and analysis by computer (separately supplied).
In Stock

Additional information

Brand

Essom
