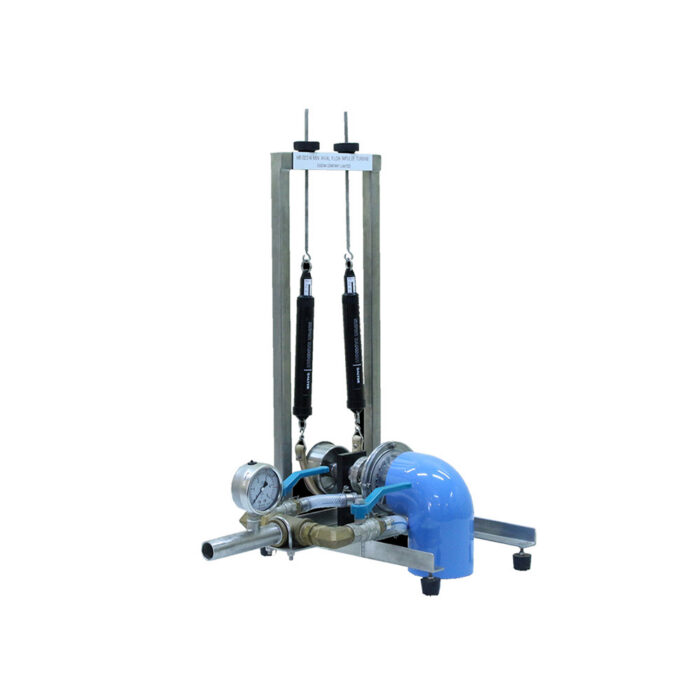

Mini Axial Flow Impulse Turbine
The turbine twin nozzles with flow control valves direct water jets to the runner radial blades. Nozzle pressure is indicated by a pressure gauge. Torque is measured by a Prony brake with two spring balances. Speed is indicated on a portable tachometer. Flow rate is measured by the Hydraulics Bench measuring tank.
TYPICAL EXPERIMENTS
- Efficiency of Axial flow impulse turbine
- Characteristic of Axial flow impulse turbine
- Turbine torque and power output versus speed and flow rate at various heads.
TECHNICAL DATA
| Construction | Stainless steel casing with transparent discharge window | |
| Maximum power | 25 W | |
| Measuring instruments | ||
| – Torque | Spring balances | |
| – Speed | Portable tachometer | |
| Software for data display and analysis by computer (separately supplied). | ||
