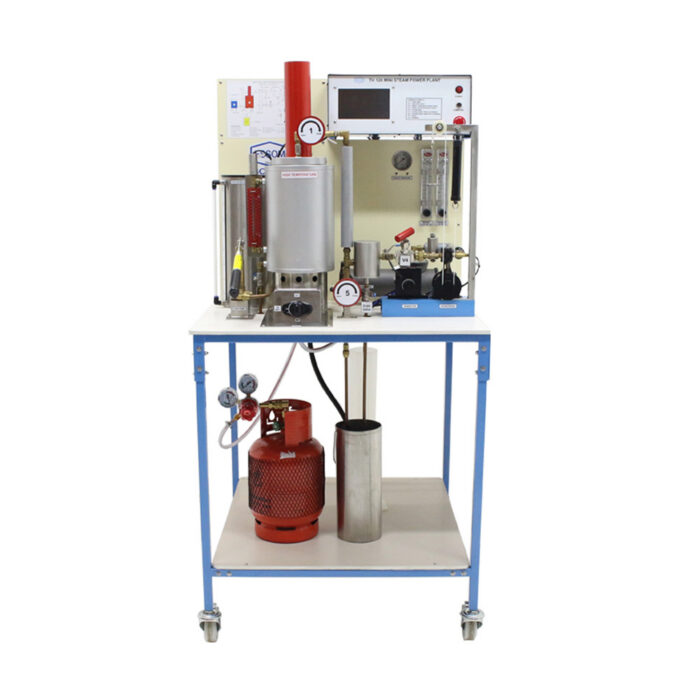

Mini Steam Power Plant
This is a small low cost miniature power plant designed for educational purpose.
A hand feed pump supplies water from a feed tank to a small gas fired boiler. Steam is throttled to a single cylinder, double acting reciprocating engine. A small DC generator is connected to the engine by a belt and electrical load is applied. Exhaust from the steam engine is condensed in a water cooled condenser. Condensate is collected and measured for steam rate.
Instruments are provided for monitoring and controlling the plant operation and performance as well as for safety.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Fuel consumption
- Efficiencies for boiler, engine and overall plant.
- Condenser heat transfer coefficient.
- Heat balance and energy utilization.
- Ranking cycle efficiency.
TECHNICAL DATA
| Boiler | |
| – Type | Fire tube vertical boiler |
| – Equivalent evaporation | Approx. 7 kg/h steam |
| – Maximum working pressure | 5 kg/cm2 (0.49 MPa) |
| Boiler accessories | Steam separator, manual feed pump, safety valve, level gauge and low level alarm |
| Fuel | Liquefied Petroleum Gas (LPG) |
| Feed water tank | Stainless steel with level gauge |
| Feed pump | Hand operated |
| Steam engine | |
| – Type | Single cylinder, double acting |
| – Plant output at maximum working pressure |
|
| Power output measurement | Mechanical brake dynamometer |
| Electrical power system | DC generator with resistive load |
| Condenser | Shell and tube type |
| Measuring instruments: | |
| – Pressure gauge | Boiler steam outlet |
| – Flow meters | 2 ea. |
| – Spring balance and weights for dynamometer torque | |
| – Graduated cylinder and stop watch for condensate measurement | |
| – Voltage and current digital display. | |
| Accessory | Boiler cleaning kits |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220 V, 1 Ph, 50Hz. Other power supply is available on request. |
