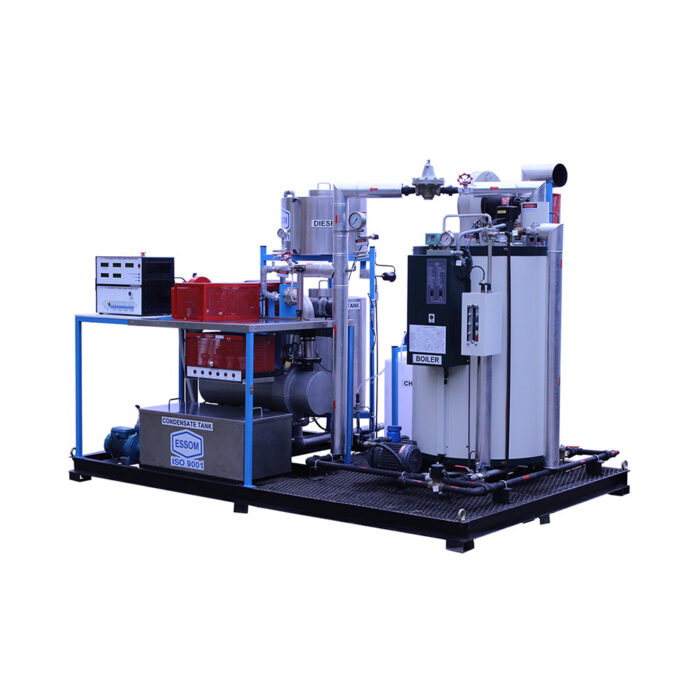

Compact Steam Turbine Power Plant 1.0 kW

The unit is designed to simulate modern steam power plant. Main components consist of a feed water system, a small industrial boiler, a steam turbine, a generator and lamp load, a condenser with a condensate tank and a pump, and a cooling tower. Accessories such as fuel tank, fuel flow meter, feed water meter, and a stack are also included. Instruments are provided for measurement of pressures, temperatures, output voltage and currents.

Instruction manual is also included.

TYPICAL EXPERIMENTS
  • Measurement of feed water and fuel flow rates.
  • Boiler efficiency, turbine generator efficiency, and overall power plant efficiency.
  • Condenser heat transfer efficiency.
  • Cooling tower efficiency.
  • Rankine cycle efficiency.
TECHNICAL DATA

The boiler set consists of:

A . Boiler Unit:
 – Type Vertical, water tube
 – Rated heat output 125 kW (107,000 kcal/h)
 – Equivalent evaporation Approx. 200 kg/h steam
 – Maximum working pressure 10 kg/cm2 (0.98 MPa)
 – Measuring instruments
  • Pressure gauge for steam outlet
  • Temperature sensors for feed water, boiler outlet and exhaust stack (including ambient temperature)
 – Safety devices
  • Safety valve
  • Level gauge and switch at boiler
  • Low level alarm
 – Boiler accessories
  • Steam separator
  • Stack, 2 x 2.4 m stainless steel with elbows
Burner:
 – Type Forced draft, pressure atomized
 – Control On-Off
 – Fuel Diesel or kerosene (LPG is available as an option.)
Fuel system Stainless steel fuel tank, fuel strainer and fuel meter
Feed water system:
 – Resin filter for public water.
 – Soft water tank. Stainless steel
 – Water meter for steam rate monitoring
Power supply 380 V, 3 Ph, 50Hz. Other power supply is available on request.



B . Steam Turbine
 – Type Single stage, twin nozzle impulse turbine
 – Maximum electrical output Approx. 0.6 kW
Measuring instruments:
 – Speed sensor for turbine
 – Temperature sensors for steam inlet and outlet
 – Pressure gauge for steam inlet
 – Water manometer for turbine outlet



C . Generator and Lamp Load
Voltage 220V, 1 Ph, 50 Hz.
Load lamps 1 set.
Measuring instruments
 – Generator speed digital display
 – Voltage and current digital display



D . Condenser and Cooling Tower
TH 102-013 Condenser

Description : The unit allows a study of heat transfer in a heat exchanger as well as recover condensate for reuse.

 – Type Steam tube
 – Accessories and instruments
  • Cooling water pump
  • Condensate transfer pump
  • Water meter
  • Condensate tank
  • Stainless steel
  • Temperature sensors for condensate, cooling water inlet and outlet
  • Strainer
TH 136-014 Cooling Tower

Description : This is an educational unit for recovering of condenser cooling water as well as studying of cooling tower efficiency. The unit consists of a cooling tower unit, a storage tank, a circulating pump and temperature gauges.

Technical data
 – Storage tank
 – Cooling tower capacity
 – Circulating pump
 – Wet bulb temperature sensor



E . Software for data display and analysis by computer (separately supplied).
