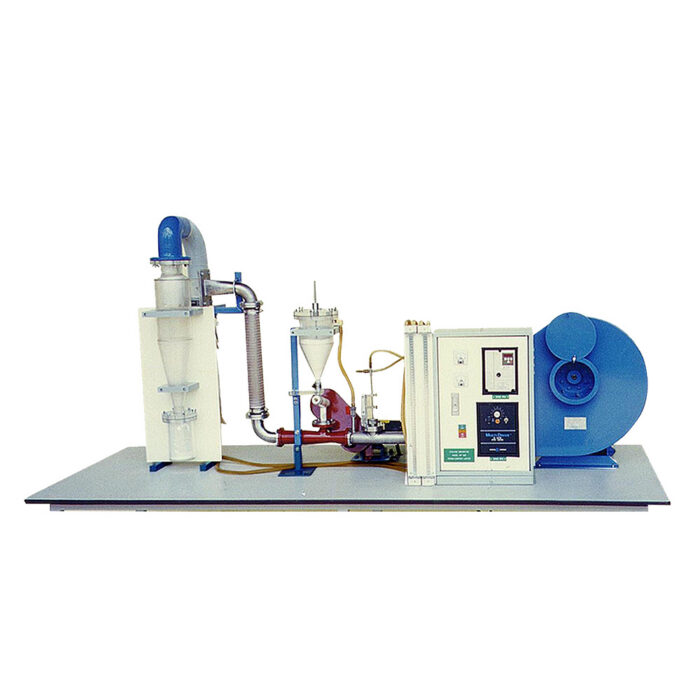

Cyclone Separator
Cyclone separator demo for studying two-phase flow, Venturi feeding, air-powder transport, and material separation using a centrifugal blower.
Description
Cyclone Separator. The equipment is for studying the principle of two phase flow using a centrifugal blower.
Powder material is fed by an agitator and a variable speed screw feeder to a Venturi tube. The material is carried by air in the tube to a cyclone where the velocity is reduced and the material is separated and dropped to the bottom.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Velocity profile of air in the transfer tube using a travelling Pitot.
- Observation of material separation in the cyclone.
- Comparison of theoretical expression with test results for pressure loss and material collection efficiency at each air velocity.
TECHNICAL DATA
| Blower: | |
| – Type | Centrifugal blower |
| – Maximum air flow rate | Over 6 m3/min |
| – Maximum pressure | Over 180 mm water |
| Speed control | Inverter |
| Cyclone | Clear acrylic and discharge tube |
| Accessories |
|
| Measuring instruments | |
| – Air flow | Travelling Pitot with water manometer |
| – Pressure | Water manometer for measurement of pressure difference in the transfer tube and the cyclone |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220 V, 1 Ph, 50 Hz. Other power supply is available on request. |
