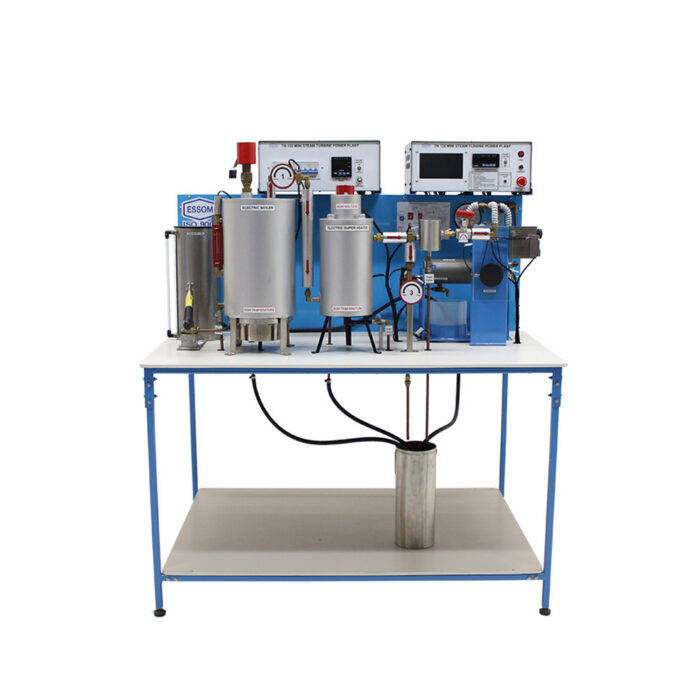

Mini Steam Turbine Power Plant
Mini Steam Turbine Power Plant is designed as a miniature modern day power plant for educational purpose.
A pump supplies water from a feed tank to a small gas fired boiler. The saturated steam can be superheated by an electric superheater (optional). The steam is throttled to single stage turbine. Exhaust from the turbine is condensed in a water cooled condenser. Condensate is collected in a graduated beaker and returned to feed water tank by a pump. A small DC generator is connected to the turbine by a belt, and electrical load is applied. A mechanical dynamometer is provided for measurement of turbine mechanical output. The unit requires outside water supply.
Instruments are provided for monitoring and controlling of plant operation and performance as well as for safety. The unit is on a steel frame with adjustable footings.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Thermodynamic process
- Fuel consumption
- Power generation
- Efficiencies for boiler, turbine, condenser heat transfer and overall plant.
- Effect of temperature on turbine efficiency (optional).
- Effect of super-heated steam on efficiency (optional).
- Heat balance and energy utilization. Rankine cycle efficiency.
TECHNICAL DATA
| Boiler | |
| – Type | Fire tube vertical boiler |
| – Equivalent evaporation | Approx. 7 kg/h steam |
| – Maximum working pressure | 5 kg/cm2 (0.49 MPa) |
| Boiler accessories | Steam separator, manual feed pump, safety valve, level gauge, and low level alarm |
| Fuel | Liquefied Petroleum Gas (LPG) |
| Feed water tank | Stainless steel with level gauge |
| Steam turbine | |
| – Type |
|
| Power output measurements | Mechanical brake dynamometer |
| Electrical power system | DC generator with resistive load |
| Condenser | Shell and tube type |
| Plant output at maximum worki | |
| – Without super heater |
|
| – With super heater (optional) |
|
| Safety features | |
| – Turbine speed limit. | |
| – Emergency switch. | |
| Accessories | Electric condensate transfer pump and boiler cleaning kits |
| Measuring instruments | |
| – Pressures gauge | 1 ea. |
| – Flow meters | 2 ea. |
| – Graduated beaker and stop watch for condensate measurement | |
| – Voltage and current digital display. | |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220 V, 1 Ph, 50Hz. Other power supply is available on request. |
