Mobile Phone Trainer

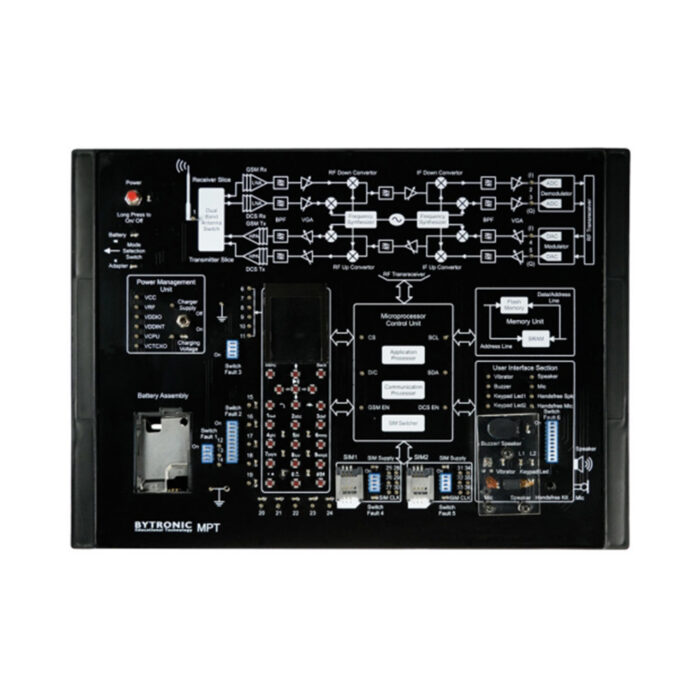

The Mobile Phone Trainer provides basic theory and working fundamentals of a 2G handset based on one of the most popular handsets, the Nokia 3310/3315. The MPT provides network, power supply, charging and user interface circuits for the detailed block study
Experiments
- To study and measure frequency band
- To study and measure the GMSK signals such as Tx I /Q, Rx I /Q
- To study and observe the system CLK
- Observation of Audio signal
- To study and measure the Power supply
- Study of charging phenomena with fault insertion
- Study and measure PWM signal of Ul circuit such as Vibrator, LED, Buzzer
- Measurement of LCD with fault insertion
- Keypad study with fault insertion
- Observe and measure of the SIM Card CLK with fault insertion
Key Features
- Real time Mobile Operation
- Full understanding of mobile phone working
- Frequency measurement and band verification
- Provides study of all sections in mobile phone
- TX/RX Frequency measurement
- 2G technology and GMSK signals
- GSM data rate
- Detail study of User Interface Control Signals
- Detail study of SIM Operation
- Battery identification and charging study
- Switched Faults
