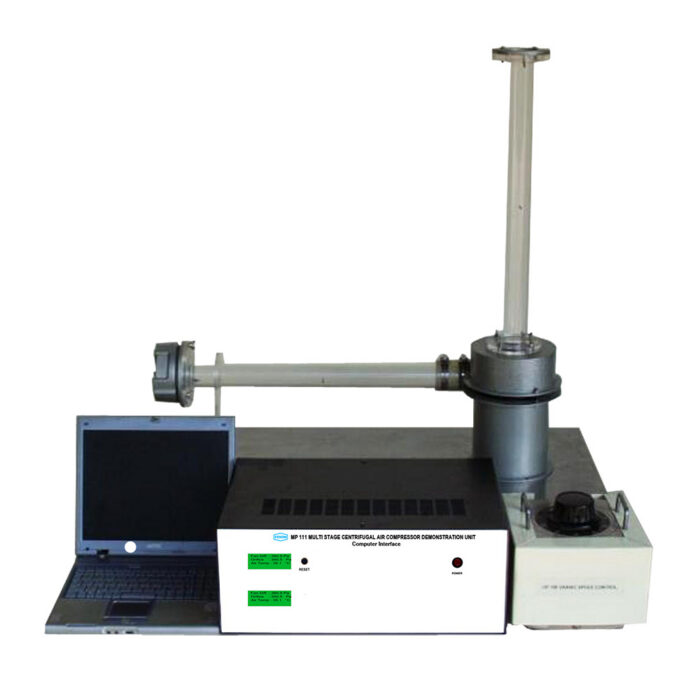

Multi Stage Centrifugal Air Compressor Demonstration Unit – Computer Interface
This is a bench top unit for studying the multi stage centrifugal air compressor characteristics with data analysis by computer.
The unit consists of a small multi stage air compressor with a motor on a steel base, inlet and outlet ducts, sensors and software.
Speed control is by a variac.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Flow rate vs pressure.
- Compressor input, output, and overall efficiency.
- Effect of speed on compressor performance.
TECHNICAL DATA
| Compressor | |
| – Type | 2 stage, centrifugal |
| – Rated maximum flow rate | 0.03 m3/s |
| – Rated maximum pressure | 25 kPa |
| Inlet duct | Transparent with orifice |
| Outlet duct | Transparent with damper |
| Speed control | Variac |
| Sensors with digital display |
|
| Computer interface unit | |
| Software for data display and analysis by computer (separately supplied). | |
| Accessory | Barometer |
| Power supply | 220 V, 1 Ph, 50 Hz. Other power supply is available on request. |
