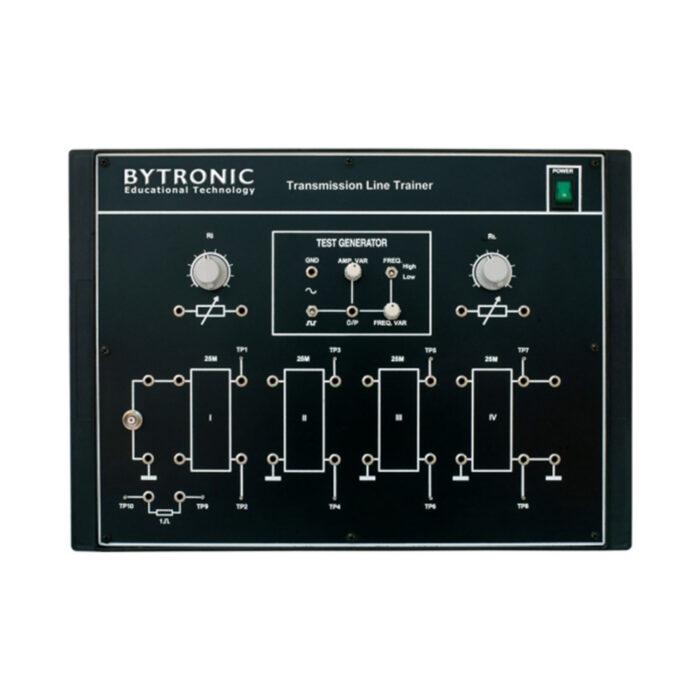

Transmission Line Trainer
In telecommunications transmission lines are used to convey signals from one point to another. The line properties become very important especially in multi-channel systems. The TLT is a unique design for experimenting with various properties of a transmission line. The unit provides the basic concepts of a coaxial line and includes all devices and accessories required to conduct the experiments.
Experiments:
- Measuring the Characteristics of a Line
- Measuring the Input Impedance of the Line
- Measuring the Attenuation of a Line
- Phase Displacement between the Current and voltage at input of a Line
- Frequency characteristic of the Line
- Stationary Waves
- Signal Phase Shift along the Line
- Fault Localization within the Line
- Line under Pulsed condition
Key Features
- 100m coaxial line
- On board test generators and terminating resistances.
- Test points
- Functional block indicated via on board mimic
Extended WarrantyRelated products
-
CommunicationsSatellite Communication Trainer
The Satellite Communication Trainer 7272 provides an in-depth study of a basic satellite communication system. It consists of an Uplink Transmitter, Satellite Link and Downlink Receiver, which can be conveniently placed in the laboratory. The satellite can be placed at an elevated position if required. The satellite transponder receives signals from an Uplink Transmitter and retransmits at different frequencies to a Downlink Receiver. The Uplink and Downlink frequencies are selectable and carry three signals – Video, Audio, Voice and Data simultaneously. Any broadband signal, digital/analogue data or function generator waveforms can be communicated through the Satellite link.
Experiments:
- Understanding the concepts of satellite communication
- Establish a direct communication link between Uplink Transmitter and Down link Receiver using tone signal
- To setup an active satellite link and demonstrate link fail operations
- To establish an audio-video transmission through a Satellite link
- Study base-band analogue signal (voice) in satellite link
- Transmission and reception function generator waveforms through satellite link
- Transmission tone through satellite link
- Establish PC to PC communication using satellite Communication Link
Key Features
- Simultaneous Communication of three different signals at each up-linking frequency
- 2414-2468 MHz PLL microwave operation
- Crystal Control Frequencies
- Communicate Audio, Video, Digital data, PC data, Tone, Voice,
- Function generator waveforms
- Communication of external broadband digital and analogue data and base-band signals
- Choice of different transmitting and receiving frequencies
- Built-in microphone and speaker for Voice and Audio link
- Detachable Dish Antenna at each station
- Facility to attach Analogue/Digital communication kits
(0 reviews) -
CommunicationsTelephone Trainer System
The Telephone Training System (TTS) helps students to understand the basic concept and functional working of a Telephone system. An onboard mimic is provided that details the various blocks of a telephone and all components. Test points and LED’s are provided to allow students to observe various signals which helps them to understand the working of each block.
Key Features
- Functional blocks
- LED visualizations
- Switched faults
- On board telephone line connection facility
- High pass and low pass filters to study DTMF frequencies
- On/Off Hook Switch, Dialler, Ringer, Speech Processing Section
- DTMF (Tone) and Pulse Dialling
- Test Points are provided to observe isolated Dual Frequency output during DTMF Dialing
