Additional information
| Brand | Essom |
|---|

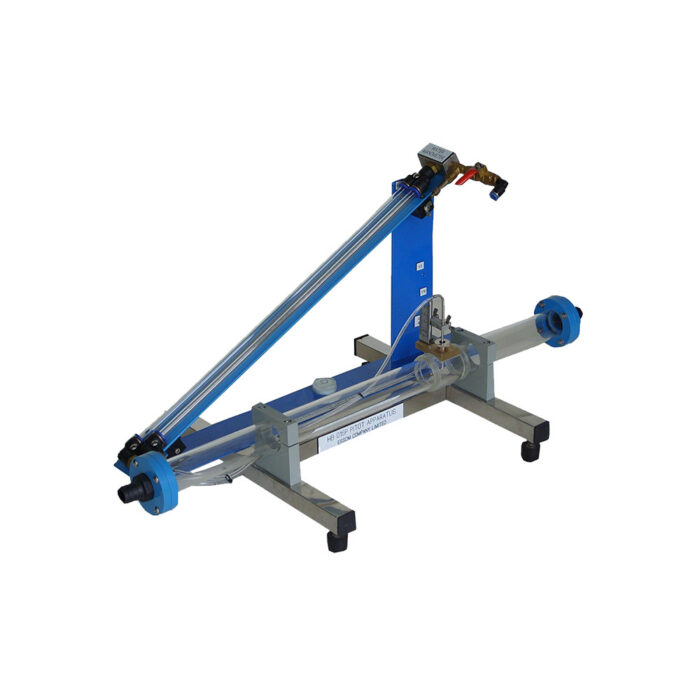

Pitot Tube Apparatus
This apparatus is for a study of velocity distribution across pipe section for a water flow in pipe, and for measurement of flow velocity. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied).
The apparatus consists of a total head tube and a static head tube for the Pitot, clear acrylic pipe, inlet and outlet, and an inclined manometer. The total head tube can be moved up or down vertically with a scale for indication of the tube position. Differential pressure is measured by a multiple inclination manometer.
TYPICAL EXPERIMENTS
- Accuracy of pitot tube meters
- Losses and k value
- Calculation of the coefficient of discharge
TECHNICAL DATA
| Acrylic tube | 34 mm. diameter. | |
| Total head probe | 1 ea. | |
| Inclined water manometer | 0-450 x 1 mm graduation. | |
| Software for data display and analysis by computer (separately supplied). | ||
