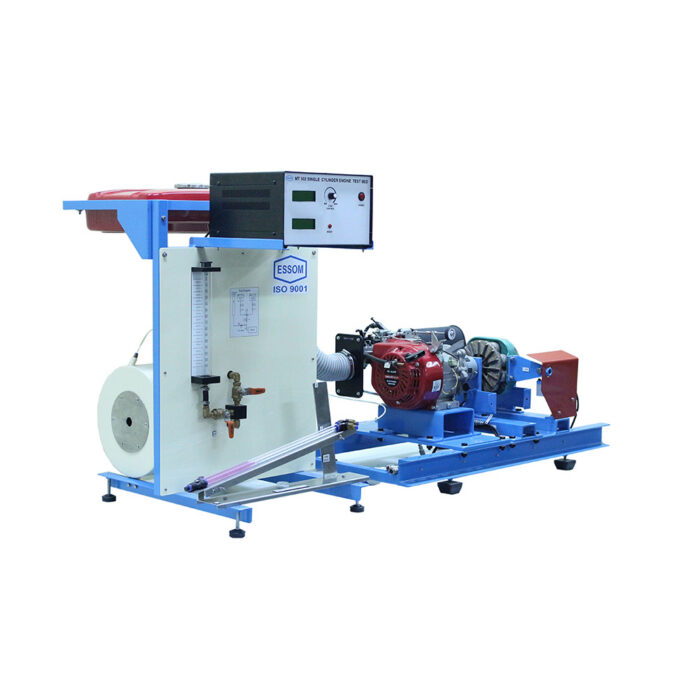

Single Cylinder Engine Test Bed (502)
This is a standard test bed for a single cylinder gasoline or diesel engine.
The engine is connected to a dynamometer on the test bed by a direct coupling with a safety guard. Instruments are provided for measurement of dynamometer torque and speed, fuel flow rate, air flow rate, and temperatures. Dynamometer load and engine throttle are manually controlled. The fuel tank and the air box are on a stand next to the engine. The test bed requires outside water supply for cooling.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Torque vs engine speed at various throttle setting.
- Engine brake horsepower and efficiency vs speed
- Specific fuel consumption
- Air/fuel ratio
- Volumetric efficiency
TECHNICAL DATA
| Dynamometer | |
| – Type | Water brake absorber. |
| – Maximum torque | At 2500 rpm. over 110 Nm. |
| – Maximum speed | 8000 rpm. |
| Engine | Single cylinder gasoline engine 3.7 kW or as required. |
| Measuring instruments | |
| – Fuel flow rate | Graduated cylinder and stopwatch. |
| – Air flow rate | Air box with pulse reducer, orifice plate, and inclined water manometer. |
| – Sensors with digital display |
|
| Accessories | Fuel tank and coupling guard. |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220 V, 1 Ph, 50 Hz. Other power supply is available on request. |
