Torsion Testing Machine: 30 N-m
This is a bench top educational machine for torsion test of small specimens.

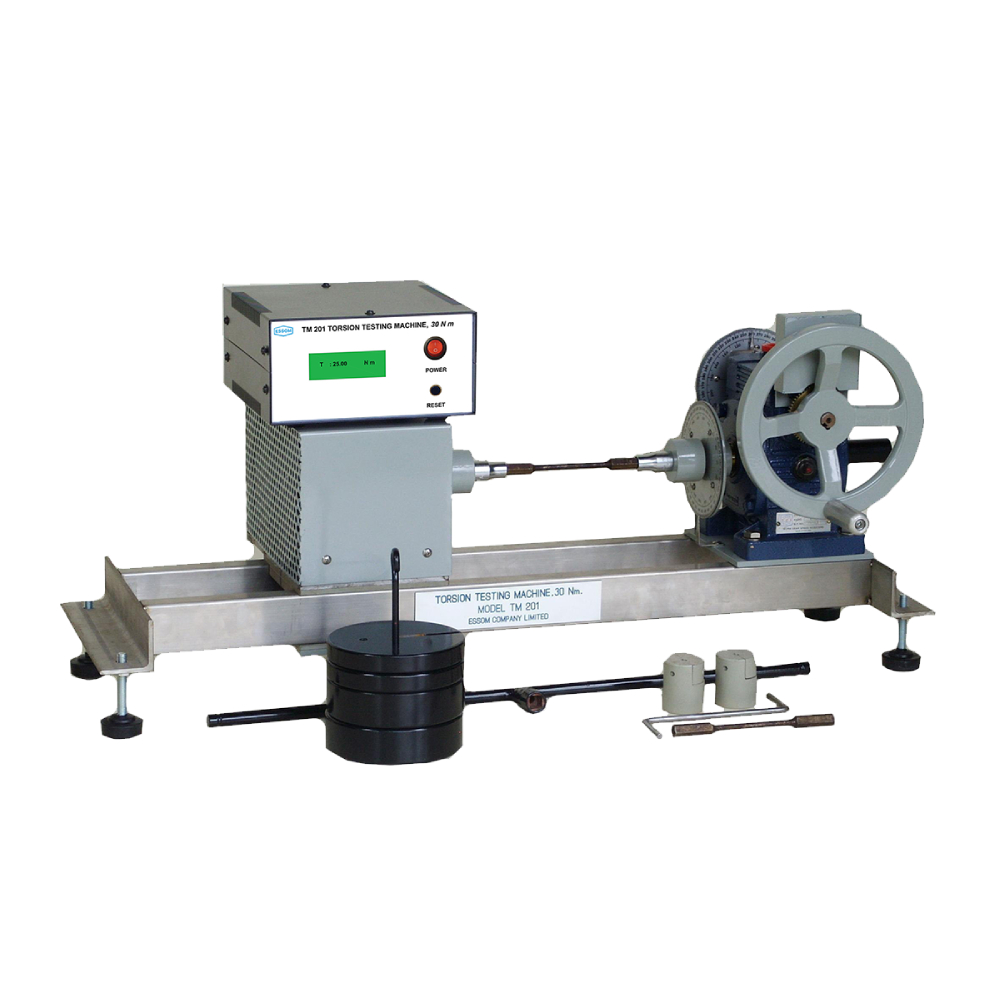

This torsion testing machine consists of two parallel stainless steel tubes fixed together at both ends. At one end is a worm gear reducer where a torsion load is applied, and angular displacement measuring devices. At the other end is a torsion tubes with an arm attached to a load cell for measurement of torsion in both forward and reverse direction. This torsion shaft unit is slidable along the tubes to take up different length specimen. Both worm gear and torsion shaft have drive sockets for hexagonal head specimen. Round specimen requires special adapters. Torque is applied manually.
The equipment is designed such that torsion shaft angular displacement, or parallel tubes and loading arm deflections are negligible under maximum load. Angle of twist on the specimen is indicated by angular scales on the worm gear reducer shafts. A revolution counter is provided at the gear box to measure total input revolutions.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Determination of modulus of rigidity and yield shear stress.
- Determination of modulus of rupture in torsion.
- Reversed torsion test to determine torsion hysteresis.
TECHNICAL DATA
| Capacity | 30 Nm |
| Drive shaft ends | 12.7 mm (1/2 in) square |
| Drive sockets | 3/8 in. whitworth for hexagonal specimen. |
| Maximum specimen length | 250 mm |
| Input shaft rotation: | |
| – Revolution counter | 5 digits |
| – Circular scale | 360 x 1 degree graduation |
| Specimen angle of twist | |
| – Circular scale | 360 x 1 degree reading |
| – Indirect reading by circular scale on input shaft: | 1/60 degree reading |
| Torque digital display | 0.1 N-m resolution. |

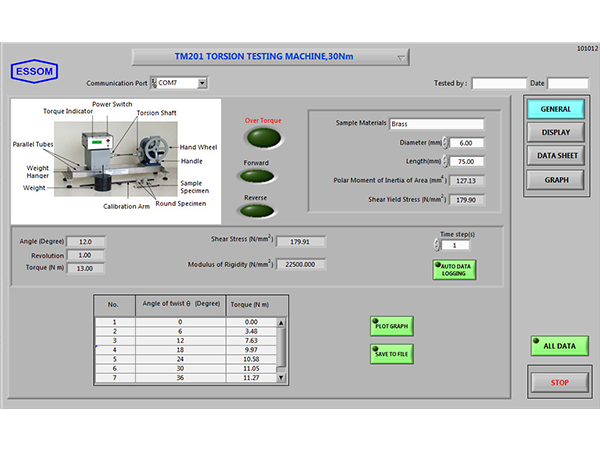

| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220V, 1 Ph, 50Hz. Other power supply is available on request. |
