Training Boiler: 100kg/hr

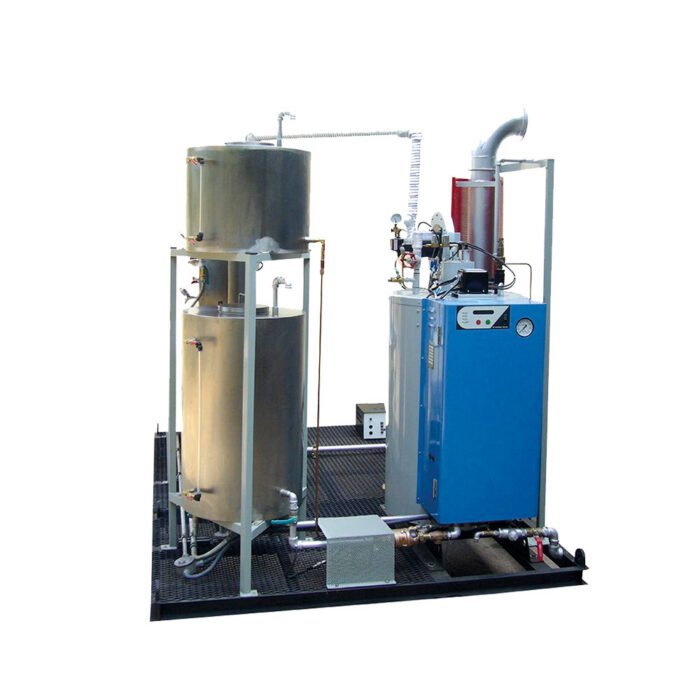

This is a set of steam boiler and standard accessories for a study of boiler performance. The basic unit consists of a small industrial type boiler with a burner, a feed water system, a fuel system, and instruments for monitoring…

This is a set of steam boiler and standard accessories for a study of boiler performance.

The basic unit consists of a small industrial type boiler with a burner, a feed water system, a fuel system, and instruments for monitoring boiler operation as well as instruments for control and safety. The complete unit is
arranged as a package on a pallet for easy site installation. Optional equipment are available for additional experiments.

Instruction manual is also included.

TYPICAL EXPERIMENTS

Pressure, temperature and flow measurements.
Heat of combustion, heat given to steam and boiler efficiency.

TECHNICAL DATA

The boiler set consists of:

Boiler unit:
– Type	Vertical, water tube
– Rated output	Approx. 105 kW (90,300 kcal/h)
– Equivalent evaporation	Approx. 100 kg/h steam
– Maximum working pressure	10 kg/cm2 (0.98 MPa)
– Measuring instruments	Pressure gauge for steam outlet , Temperature sensor and indicator with a selector switch for or feed water, outlet steam and exhaust stack
– Safety devices	Safety valve , Low level alarm
– Boiler accessories	Steam pressure regulator , Steam separator , Feed water pump , Stack, 2x 2.4 m stainless steel with elbows

Burner:
– Type	Forced draft, pressure atomized
– Control	On-Off
– Fuel	Diesel or kerosene (LPG is available as an option.)
Fuel system	Fuel tank, fuel meter and oil strainer
Feed water system	Resin filter, soft water tank and water meter.
Power supply	220V, 1 Ph, 50Hz. Other power supply is available on request.
