Single Stage Air Compressor Test Set – Air Cooled

The test set is for studying the single stage reciprocating air compressor characteristics.

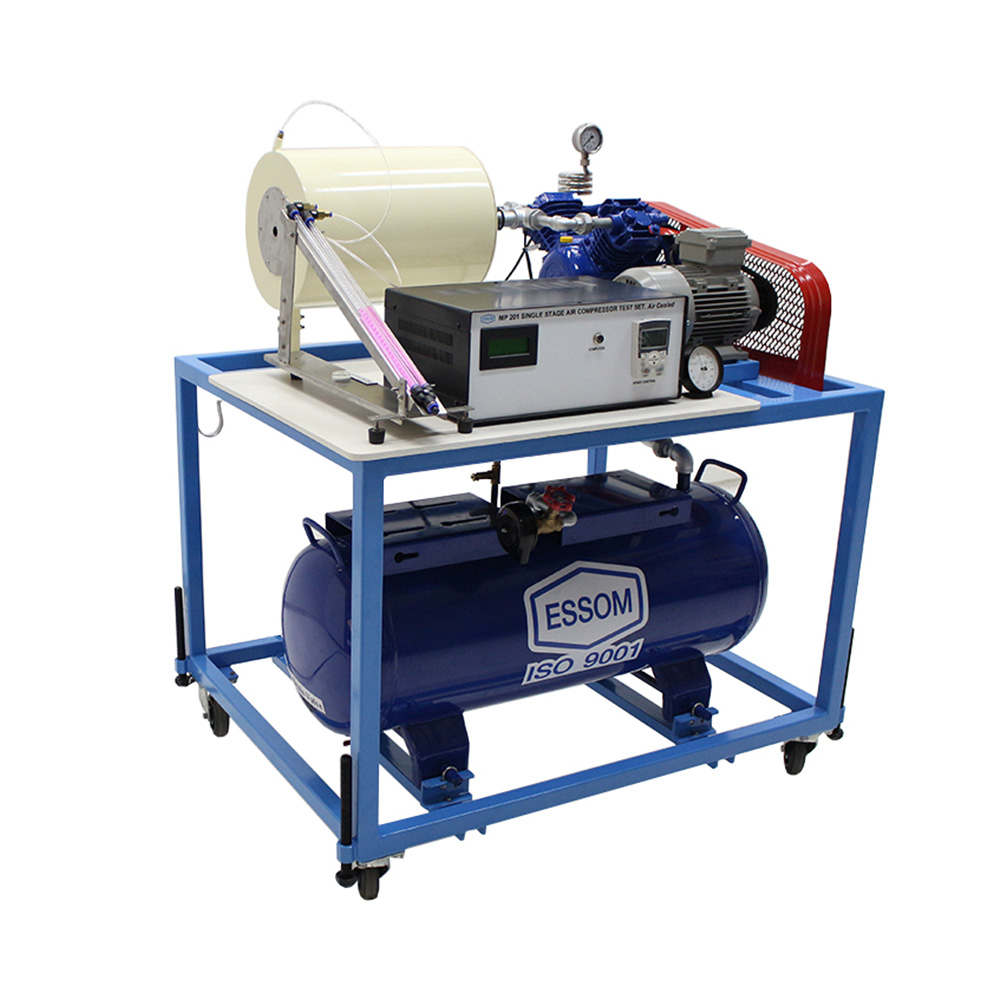

An industrial type compressor is driven via a vee-belt by a motor with an advanced inverter. The air receiver has, safety valves, pressure switch, a drain valve and a discharge valve. The unit is equipped with necessary measuring instruments and is on wheels.

Instruction manual is also included.

TYPICAL EXPERIMENTS
  • Compressor characteristics e.g. volumetric efficiency, isothermal efficiency, pressure ratio, temperature ratio.
  • Effect of compressor speed.
TECHNICAL DATA
Compressors:
 – Type Air-cooled, single stage
 – Displacement 300 ml or approximate equal
 – Maximum working pressure 8 kg/cm2
Air receiver Approx. 90 L or as requested
Measuring instruments
 – Pressure Pressure gauge at compressor outlet
 – Air flow rate Inlet orifice plate with air box and inclined water manometer 0-450 mm x 1 mm graduation, multiple slope 1:10, 1:5, 1:2 and 1:1
 – Motor input power Advanced inverter
 – Sensors with digital display
  • Speed for compressor
  • Temperatures for ambient and outlet air
Accessory Barometer
Software for data display and analysis by computer (separately supplied).
Power supply 220V 1Ph 50 Hz. Other power supply is available on request.
