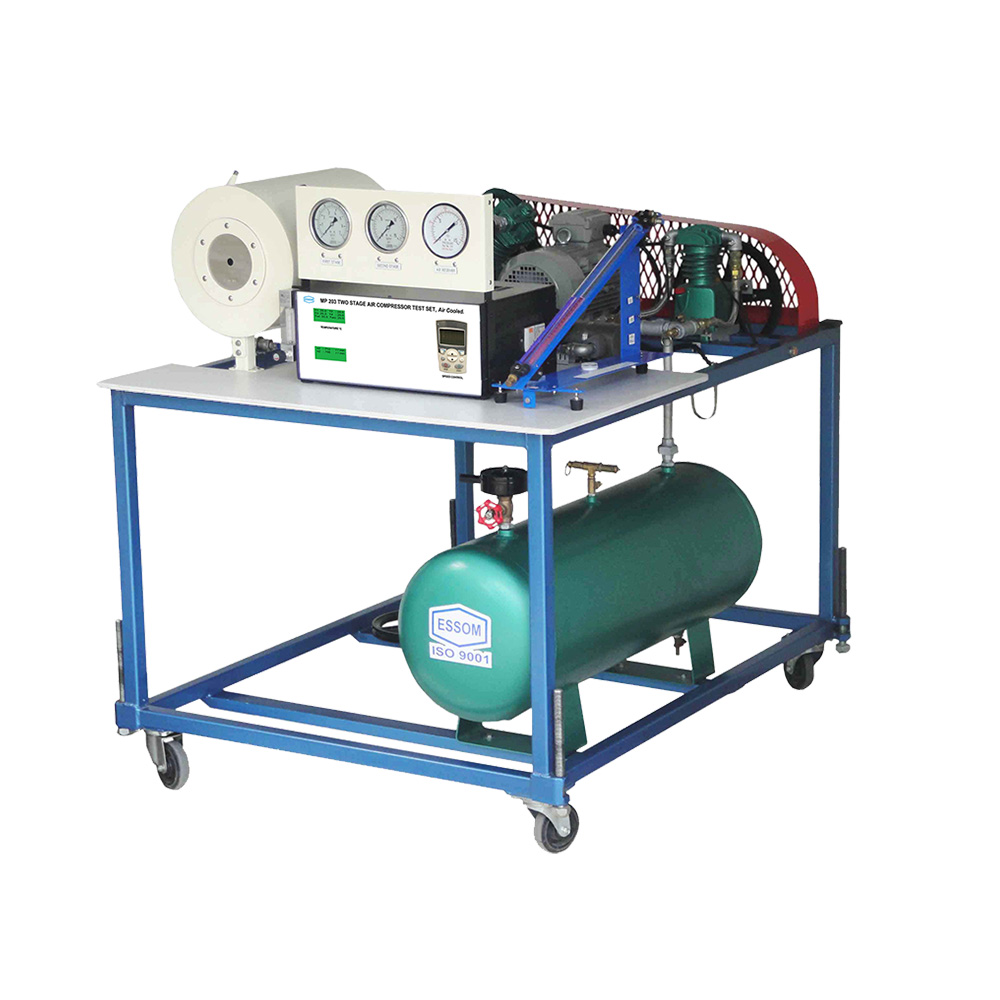

Two Stage Air Compressor Test Set: Air-Water Cooled
The test set is for studying the two stage reciprocating air compressor characteristics. For educational purpose, the two stages are separated and can be operated at different speeds. Both stages are connected by vee-belts to the same motor with an…
The test set is for studying the two stage reciprocating air compressor characteristics.
For educational purpose, the two stages are separated and can be operated at different speeds. Both stages are connected by vee-belts to the same motor with an advanced inverter. The second stage compressor has three alternative pulleys to vary the pressure ratio between the two stages. An intercooler is provided between first and second stage. The air receiver has a drain valve, safety valve, pressure switches and a discharge valve. The piping system is arranged such that intercooler or second stage compressor can be by passed. The unit is equipped with necessary measuring instruments and is on wheels.
Instruction manual is also included.
- Compressor characteristics e.g. volumetric efficiency, isothermal efficiency, pressure ratio, temperature ratio.
- Effect of compressor speed.
- Effect of intercooler.
- Effect of second stage drive ratio.
- Effect of inter cooling.
- Air water heat exchanger demonstration.
| Compressors: | |
| – Type | Air-cooled, two stage |
| – Displacement | 300 ml. or approximate equal |
| – Second stage | Single cylinder, completed with three different diameter pulleys |
| – Maximum working pressure | 12 kg/cm2 |
| Air receiver | Approx. 90 L or as requested |
| Intercooler | Water cooled, counter flow heat exchanger |
| Measuring instruments | |
| – Pressures | Pressure gauges at first stage and second stage outlets, and air receiver |
| – Air flow rate | Inlet orifice plate with air box and inclined water manometer, 0-450 mm x 1 mm graduation, multiple slope 1:10, 1:5, 1:2 and 1:1 |
| – Motor input power | Advanced inverter |
| – Sensors with digital display |
|
| Accessory | Barometer |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220V, 1 Ph, 50 Hz. Other power supply is available on request. |
| Brand |
Essom |
|---|
