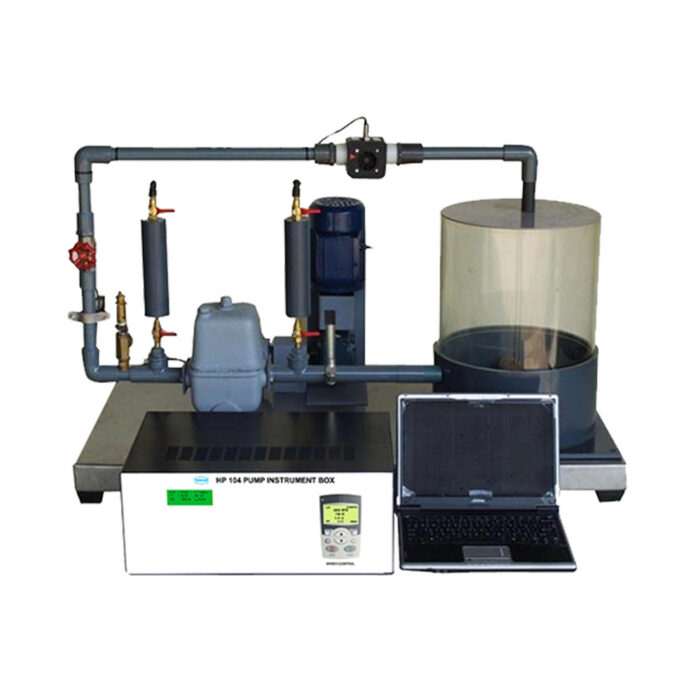

Reciprocating Pump Demonstration Unit – Computer Interface
This is a self-contained unit for studying the reciprocating pump characteristics with data display and analysis by computer.
The unit consists of an industrial reciprocating pump driven by a reduction gear and motor, a PVC storage tank, sensors, and software. The unit is on a steel base. It is to be used with HP 104 Advanced inverter with computer interface unit is required but separately supplied.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Flow rate vs head characteristics.
- Pump input, output and overall efficiency at various speeds.
- Effect of pulse chamber.
- Volumetric efficiency.
TECHNICAL DATA
| Pump rating | |
| – Maximum flow rate | 15 Lpm. |
| – Maximum head | 30 m water |
| Pump accessories | |
| – Pressure relief valve at pump discharge | |
| – Pulse chambers for pump suction and discharge | |
| – Isolating valve for discharge pulse chamber | |
| – Discharge flow control valve | |
| Speed control | HP104 (separately supplied) |
| Sensors with digital display |
|
| Software for data display and analysis by computer (separately supplied). | |
100% Original and qualityRelated products
-
Hydraulic Studies and AccessoriesHydrostatics Panel
The equipment is a bench top unit for the study of basic properties of fluids in hydrostatic conditions. Components are placed on the panel. The unit can be placed on a suitable bench top and requires outside water supply to be stored in the provided storage tank.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Measurement of level, pressure, temperature, specific gravity, viscosity, humidity.
- Demonstration of Pascal’s law, Archimedes principles, capillary effect.
TECHNICAL DATAThe accessories for the panel include:- Inclined water manometer
- Barometer
- Hygrometer
- Thermometer
- Hydrometer
- Stainless steel vernier hook gauge
- Capillary attraction plates
- Capillary tubes
- Capillary viscometer
- Falling sphere viscometer
- Specific gravity bottle
- Triple beam balance
- Beaker, graduated cylinder and pipette.
- SP 111 Archimedes apparatus.
- SP 112 Pascal’s apparatus.
- Software for data display and analysis by computer (separately supplied).
- Storage tank
(0 reviews) -
Hydraulic Studies and AccessoriesHydrostatics Pressure – Tilting Jar Quadrant
This equipment allows the moment caused by a fluid thrust on a wholly or partially filled plane surface to be measured directly. This surface can be tilted.
A clear acrylic hollow quadrant is hinged with ball bearings onto a fixed arm which coincides with the quadrant center. A lever arm is also hinged on the same axis. The quadrant can be tilted by changing the lock pin position. At the other end of the lever arm is an adjustable counter weight.
A depth scale for water and angular scale for quadrant tilting are indicated on the quadrant. When water is admitted into the quadrant the lever arm will tilt. Sliding weights with hanger are then applied to the arm to balance the quadrant with water. The weight can be moved linearly on a scale such that the exact turning moment can be determined.
The apparatus rests on adjustable footings and a bull’s eye level is provided.
TYPICAL EXPERIMENTS- Visual demonstration of the Shear Force and Bending Moment at a cut section in a beam
- Determination of the Centre of Pressure
TECHNICAL DATAQuadrant Inner radius 100 mm. – Outer radius 200 mm. – Width 75 mm. Tilting angle 0 to 30 degrees in either direction Weights 1 lot. Software for data display and analysis by computer (separately supplied). (0 reviews)
