Simple Suspension Bridge
This equipment allows measurement of cable tension resulting from uniform and non-uniform distributed and point loads on the rigid deck. It is to be used with ST300 Universal Structural Frame (separately supplied).

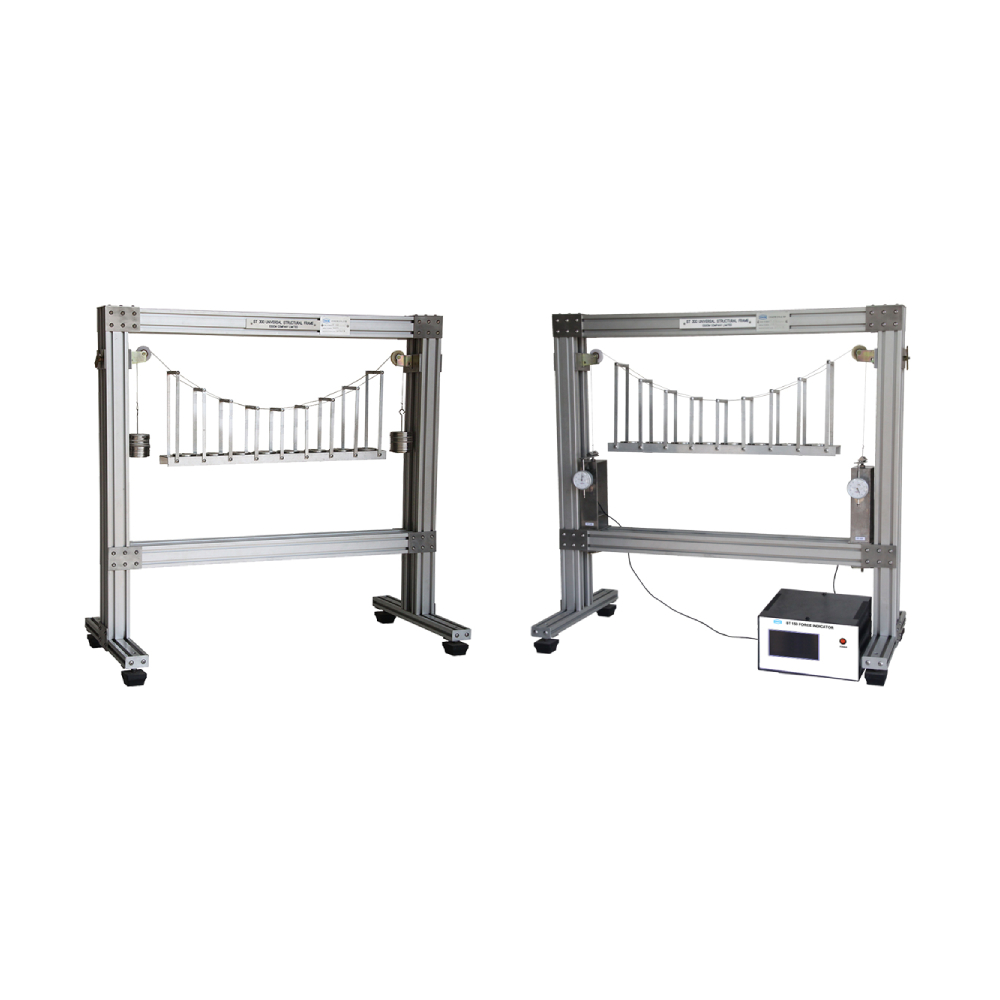

A light metal alloy with stiffening ribs is carried by two rows of nine equally spaced hangers, one on each side. Each row of hangers has a flexible steel cable support whose length simulates a parabolic curve. Each end of the cable passes over a pulley to a load hanger. Special loads are provided to simulate uniform distribution load and movable point load.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Demonstration of the characteristics of a simple suspension bridge
- Examination of the relationship between applied loads and the suspension cable tension
- Observation of the stability of the structure
- Comparison of behavior to simplified cable theory
TECHNICAL DATA
| Bridge | Aluminum 660 long x 75 mm wide |
| Arch | 600 mm span, 150 mm and 100 mm dip |
| Pulley sets | 2 |
| Load hangers | 2x |
| Point load and weights | 1 lot. |
| Software for data display and analysis by computer (separately supplied). | |
