| Brand | Essom |
|---|

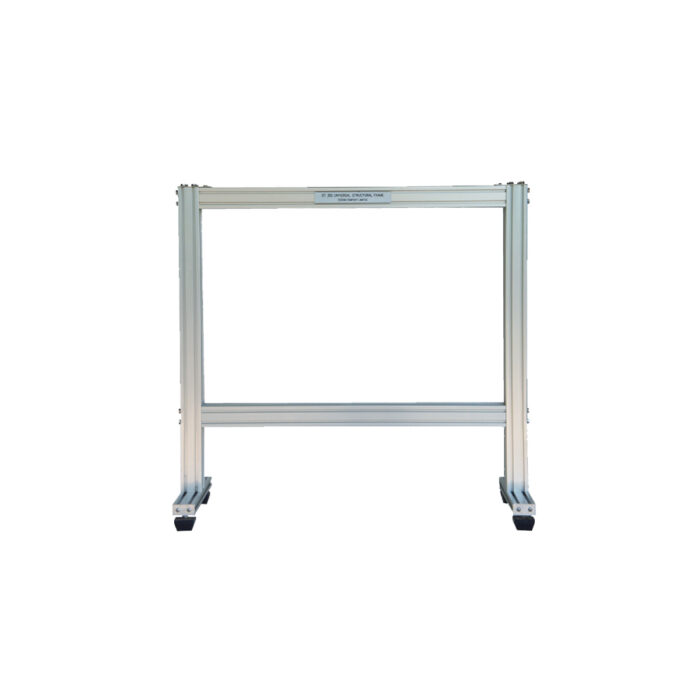

Universal Structural Frame
This is a basic bench top type twin rectangular frame of 30 x 60 mm aluminum profile with adjustable footings. Optional structural models and accessories are attached to the twin frame by clamps to support specific experiments in the field of structural mechanics especially where underhung and sidehung weights are required.
TECHNICAL DATA
| Dimensions WxLxH | 450 x 970 x 980 mm |
| Twin member space | 30 mm |
| Window opening | 850 x 650 mm |
| Maximum load capacity | 2.5 kN |
| Net (unassembled) Shipping Dimensions WxLxH | 15 x 85 x 15 cm. |
| Net Weight | Approx. 14 kg. |
| COMPUTER ASSIST SET | |
|---|---|
| A number of accessories can be replaced by digital units. A Computer Assist set is offered for the case that digital accessories with output signals are used. In this case, a computer interface unit is included. |
| SOFTWARE | |
|---|---|
| This software can accommodate both manually key-in inputs and inputs from computer interface unit. The software includes test data table, formula and calculated data. |
