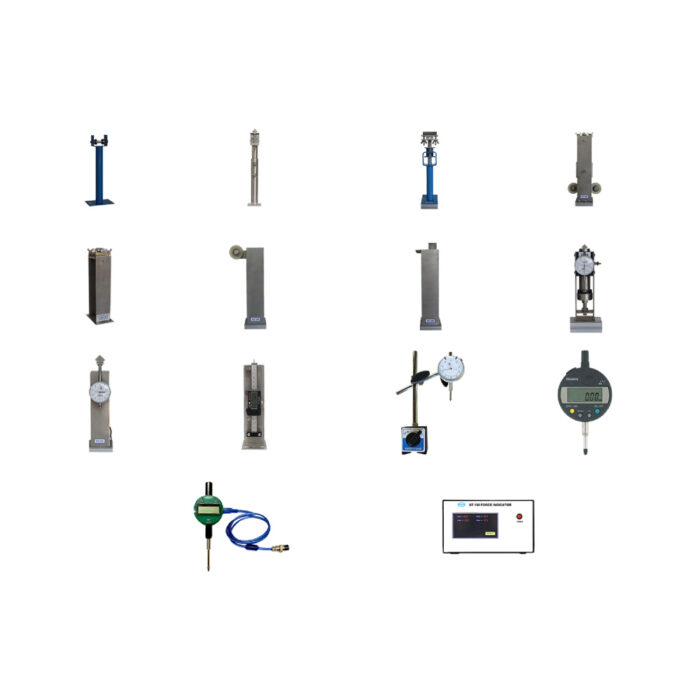

Accessories for Structures
The following accessories are common and required in many experiments. If several sets of structure experiments are needed, user with limited budget need not purchase these accessories for every set if all the sets are not used at the same time.
ST 111 ROUND SUPPORT
ST 112 BUILT-IN/KNIFE EDGE SUPPORT,
Sliding Flat Bar
ST 113 BUILT-IN/ KNIFE EDGE SUPPORT,
Flat Bar or Rod
ST 115 MOMENT SUPPORT
ST 116 MOMENT LOAD CELL
ST 119 HORIZONTAL FORCE SUPPORT
ST 120 HORIZONTAL FORCE LOAD CELL
ST 124 VERTICAL FORCE SUPPORT
ST 125 VERTICAL FORCE LOAD CELL
ST125L VERTICAL FORCE LOAD CELL, Long
ST131,ST131A DIAL INDICATOR
ST132A DIGITAL INDICATOR
ST133 DIGITAL INDICATOR, With Output
ST 150 FORCE INDICATOR
100% Original and qualityRelated products
-
Hydraulic Studies and AccessoriesOrifice and Jet Flow
This equipment allows determination of coefficient of velocity and coefficient of discharge under various constant heads for two different orifice diameters. Comparison of jet trajectory with that by theory of mechanics can also be made. The equipment is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied).
The equipment consists of a removable clear acrylic cylinder with sharp edge orifice installed at and flush with the lower inside wall of the cylinder. An adjustable overflow allows various constant heads for the test and trajectory of the jet is indicated by probes on the jet path. Heights of the probes are indicated by scales. The apparatus rests on adjustable footings and a level gauge is provided.
TYPICAL EXPERIMENTS- Comparison of the actual and theoretical outlet velocity
- Calculation of discharge coefficient
- Determination of the contraction and velocity coefficients
- Determination of discharge characteristics (jet trajectory) for an orifice mounted in the side of a vertical tank and comparison with simple theory
TECHNICAL DATAOrifice diameter 2 different sizes. Trajectory probes 8, stainless steel Measuring cup 1 L Software for data display and analysis by computer (separately supplied). (0 reviews) -
Hydraulic Studies and AccessoriesPipe Friction
This equipment measures pressure drop when water flows through a vertical pipe at various flow rates both laminar and turbulent. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied).
It consists of adjustable constant head water source of removable clear acrylic cylinder for laminar flow. Turbulent flow may be achieved by directly connecting the pipe to the Hydraulics Bench water supply. A water manometer with a vent valve, a hand air pump and a differential pressure gauge are provided for measurement of pressure drop. A valve at the outlet is used to control outlet pressure.
TYPICAL EXPERIMENTS- Investigations of laminar and turbulent flows
- Demonstration and measurement in a change of the laws of resistance (friction factor) from laminar to turbulent flow
TECHNICAL DATAWater manometer 450 mm x 1 mm graduation. Differential pressure gauge 1 ea. Test section length Over 500 mm. Measuring cup 1 L. Software for data display and analysis by computer (separately supplied) (0 reviews)
