Analogue Electronics Lab

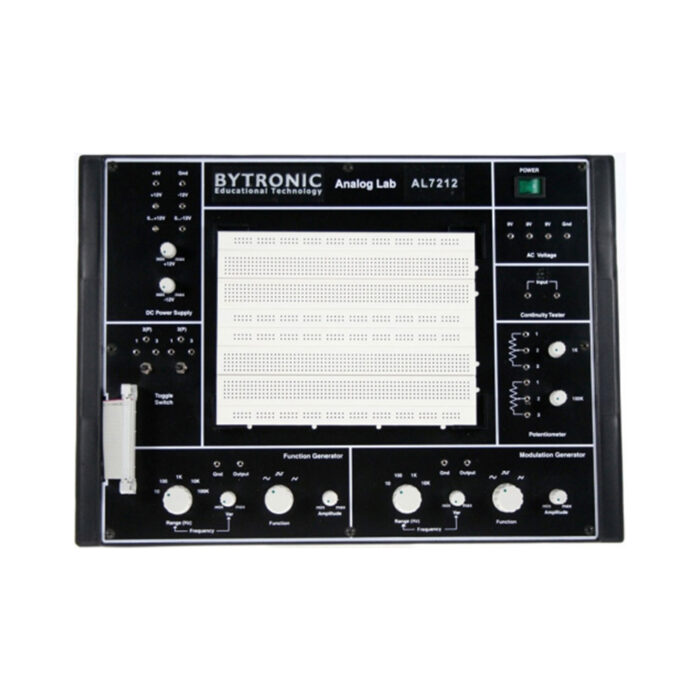

The AL7212 is designed for experimentation with analogue circuits in the laboratory. The AL7212 is a self-contained trainer which includes a DC regulated and AC power supplies, function generator, modulation generator, continuity tester, potentiometers and toggle switches. The unit is supplied with a breadboard to help students experiment with test circuity using various components without having to solder. A number of ready to use experiment circuit boards are provided.
Experiments:
- Silicon, Zener, LED Diode Characteristics
- Common Base NPN and PNP Transistor Characteristics
- Common Emitter NPN and PNP Transistor Characteristics
- Common Collector NPN and PNP Transistor Characteristics
- N-Channel FET Characteristics
- Common Emitter Amplifier
- Common Collector Amplifier
- Common Base Amplifier
- Zener Voltage Regulator
- Transistor Series Voltage Regulator
- Transistor Shunt Voltage Regulator
- Low Pass – High Pass Active Filters
- Active Band Pass Filter
- Phase Shift Oscillator
- Wien Bridge Oscillator
- Colpitt Oscillator
- Kirchoff’s Laws (KCL and KVL)
- Thévenin’s Theorem, Maximum Power Transfer Theorem
- Reciprocity Theorem, Superposition Theorem
Key Features
- Functional blocks indicated on board mimic
- On board DC and AC power supply
- On board Function and Modulation Generator
- On board Continuity Tester.
- On board Toggle switches and Potentiometers
- Solderless Breadboard
- 22 Ready to use circuit boards designed experiments for breadboard
