Additional information
| Brand | Essom |
|---|

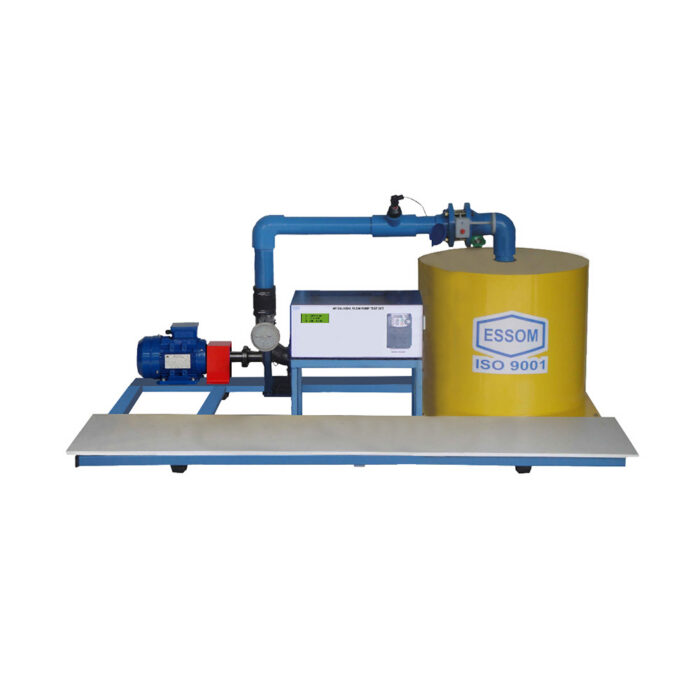

Axial Flow Pump Test Set – Inverter Speed Control
This is a bench top self contained set for studying the characteristics for axial flow pump.
The unit consists of axial flow pump and a storage tank, measuring instruments. Speed control is by an advanced inverter.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Flow rate vs head at various speeds.
- Pump input, output, and overall efficiency at various speeds.
TECHNICAL DATA
| Pump: | |
| – Construction | Metal impeller, guide vanes, shaft and casing |
| Speed control | Advanced inverter for controlling and indicating pump speed as well as for calculating motor input power. |
| Measuring instruments: | |
| – Pressure | Differential pressure gauge for axial flow pump |
| – Pump speed and motor input power | Advanced inverter |
| – Sensors with digital display | Flow rate |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220 V, 1 Ph, 50 Hz. Other power supply is available on request. |
