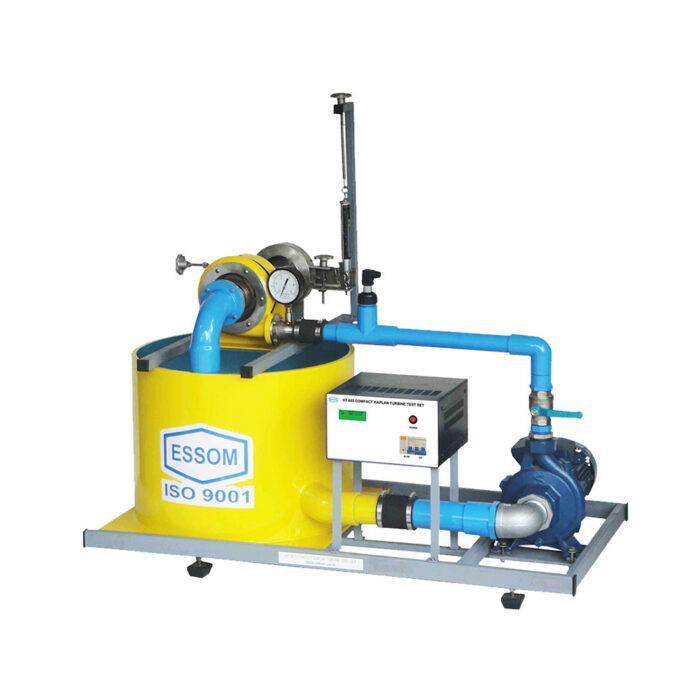

Compact Kaplan Turbine Test Set
This is a self contained bench top set for studying the Kaplan turbine characteristics under various flow rates and heads.
The unit consists of a storage tank, a pump, a Kaplan turbine, a dynamometer, and measuring instruments. The adjustable guide vanes direct water helically to the runner.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Torque vs speed at various heads and flow rates.
- Power output vs speed for various heads and flow rates.
- Efficiency vs speed for a given head and flow rate.
- Racing characteristics.
TECHNICAL DATA
| Turbine: | |
| – Construction |
|
| – Ratings | Over 400W of brake power |
| Pump ratings : | |
| – Motor | 2.2 kW |
| Dynamometer | Water cooled mechanical brake absorber with anti splashing system |
| Measuring instruments | |
| – Torque | Spring balance |
| – Pressure | Pressure gauge |
| – Sensors with digital display | Flow rate and speed |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220 V, 1 Ph, 50 Hz. Other power supply is available on request. |
