| Brand | Essom |
|---|

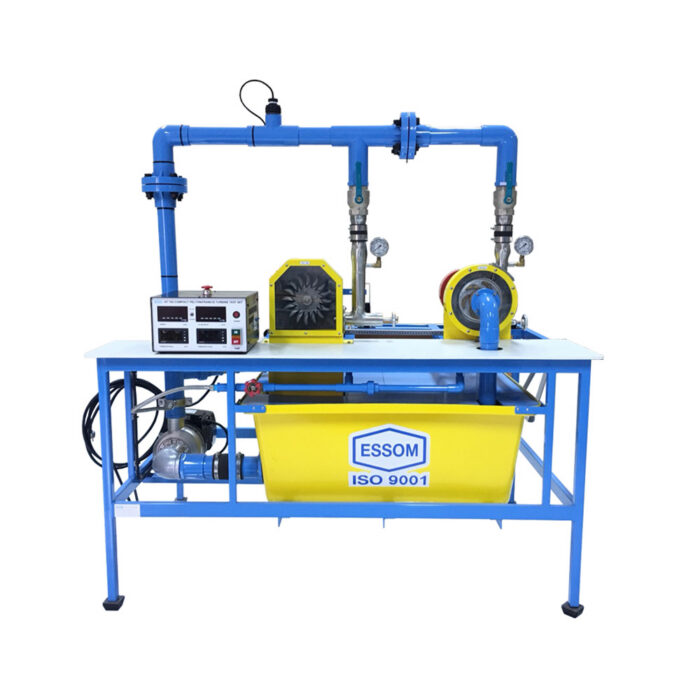

Compact Pelton/Francis Turbine Test Set
This is a self contained set of Pelton and Francis turbines, designed for studying the turbine characteristics under various flow rates and heads.
The unit consists of a pump, a storage tank, a Pelton and a Francis turbine connected in parallel, a dynamometer for each turbine, and measuring instruments. The unit is on adjustable footings.
Instruction manual is also included.
TYPICAL EXPERIMENTS
Each turbine can be tested on the following:
- Torque vs speed at various heads and flow rates.
- Power output vs speed for various heads and flow rates.
- Efficiency vs speed for a given head and flow rate.
- Racing characteristics.
TECHNICAL DATA
| Pelton turbine | |
| – Construction |
|
| – Ratings | 400 W of brake power |
| Francis turbine | |
| – Construction |
|
| – Ratings | Over 400 W of brake power |
| Pump ratings | |
| – Motor | 2.2 kW |
| Dynamometer | Water cooled mechanical brake absorber with anti splashing system |
| Measuring instruments | |
| – Torque | Spring balance |
| – Pressure | Pressure gauges at turbine inlets |
| – Sensors with digital display | Flow rate and speeds |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220 V, 1 Ph, 50 Hz. Other power supply is available on request. |
