Compact Series and Parallel Pump Test Set – Multi Speed
This is a self-contained bench top unit for studying the series and parallel pump characteristics at three different speeds.

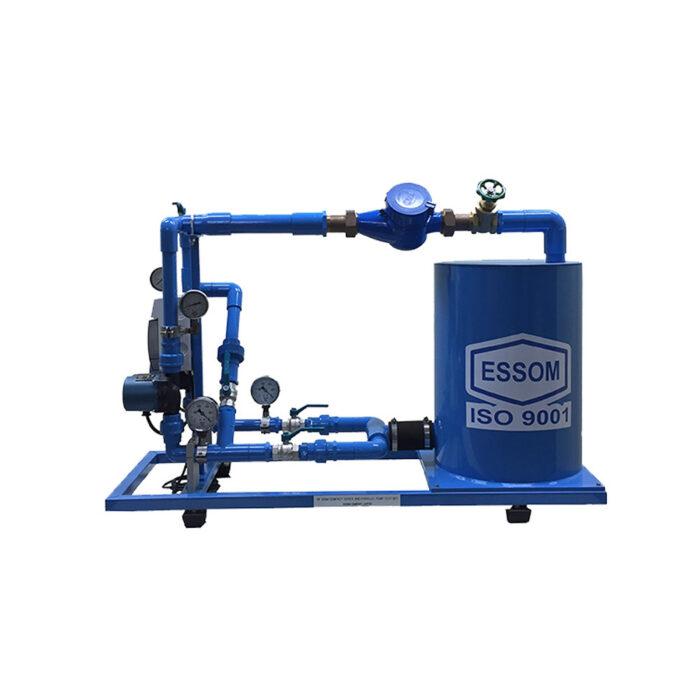

The unit consists of two centrifugal pumps with multi speed motors and a storage tank on a steel base, and measuring instruments. By manipulating flow control valves, each pump can be operated individually or both pumps connected in series or parallel.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Flow rate vs head at various speeds for individual pump.
- Flow rate vs head at a fixed speed for two pumps connected in series or parallel.
TECHNICAL DATA
| Pump ratings | |
| – Speed | 3 different speeds. |
| – Maximum flow rate | Approx. 70 Lpm |
| – Maximum head | Approx. 7 m. water |
| Measuring instruments: | |
| – Flow rate | Water meter and stop watch |
| – Pressures | Pressure gauges at pump suction and discharge |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220 V, 1 Ph, 50 Hz. Other power supply is available on request. |
