| Brand | Essom |
|---|

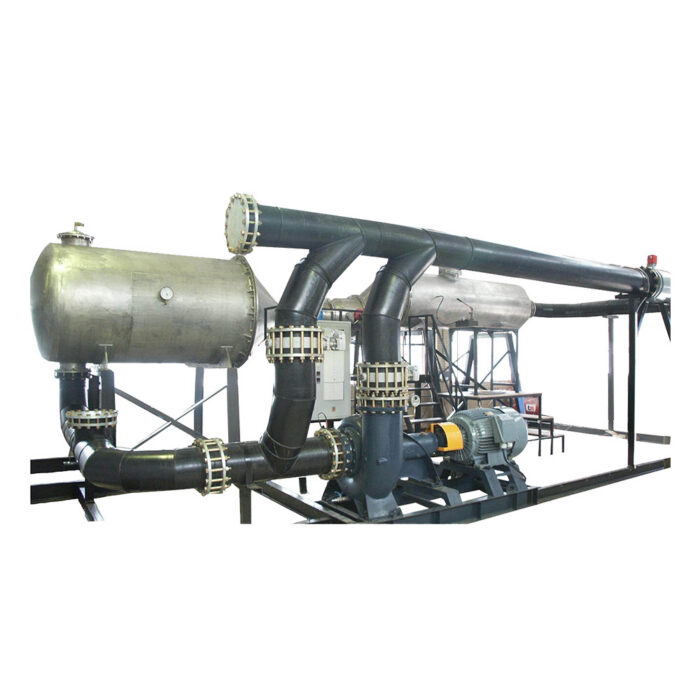

Low Head Hydraulic Turbine Test Rig
This test facility was design and developed jointly with The Joint Graduate School of Energy and Environment (five institutions). It is intended to simulate large hydro power plant discharge for end user in designing small low head turbines.
The test rig provides water flow as well as measuring instruments. Flow is generated by a centrifugal pump. A head tank in front of the test section is provided to simulate a static head and another tank is provided after the test section. Flow rate and head can be varied by an inverter. A flow control valve at the pump discharge and a flow control valve of the return line between pump discharge and pump suction are provided. A dynamometer at the test section measures the designed turbine output.
The equipment is supplied unassembled and to be erected and commissioned at site.
Instruction manual is also included.
TYPICAL EXPERIMENTS
This is an ideal facility to simulate flow conditions of the actual site. The turbine input (flow rate and head) and output (speed and torque) can be accurately monitored. Thus, the most efficient prototype turbine can be designed, developed and tested.
TECHNICAL DATA
| Pump ratings |
|
| Circulating pipe | 300 mm diameter |
| Test section | 300 mm diameter x 750 mm long |
| Dynamometer | Water brake absorber, 30 kW rating |
| Head tank at upstream of test section | 950 mm diameter x 3 m long |
| Tail tank after test section | 1430 mm diameter x 2.2 m long |
| Sensors with digital display |
|
| Steel base frame with supports for tanks and pipings, test section platform with ladder. | |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 380V, 3Ph, 50Hz. Other power supply is available on request. |
100% Original and qualityRelated products
-
Turbine Test SetMini Pelton Turbine Demonstration Unit, Computer Interface
This is a mini Pelton turbine for studying the turbine characteristics with data analysis by computer.
The unit consists of the mini Pelton turbine with a dynamometer, and output power sensors. The adjustable turbine nozzle directs water jet to the runner buckets.
The unit is to be used with HT110 Mini Turbine Service Unit or HB100N Hydraulic Bench (Neo) with optional accessories. Both are separately supplied.
Instruction manual is also included.
TYPICAL EXPERIMENTS- Torque vs speed at various heads and flow rates.
- Power output vs speed for various heads and flow rates.
- Efficiency vs speed for a given head and flow rate.
- Racing characteristics.
TECHNICAL DATAConstruction - Stainless steel nozzle and hardened shaft
- Stainless steel casing with transparent window
Ratings Maximum power over 40 W Dynamometer Mechanical brake Sensors with digital display Torque and speed Software for data display and analysis by computer (separately supplied). (0 reviews) -

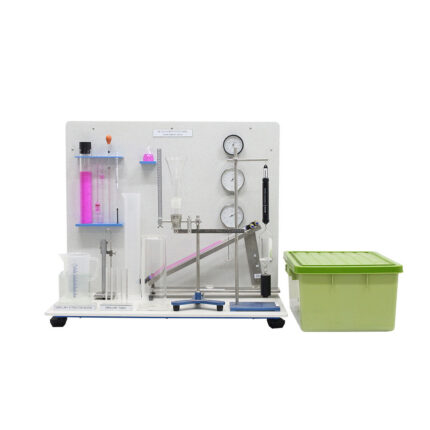

Hydraulic Studies and AccessoriesHydrostatics Panel
