Flow Meters
This equipment determines the coefficients of discharge for different flow measuring devices. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied).

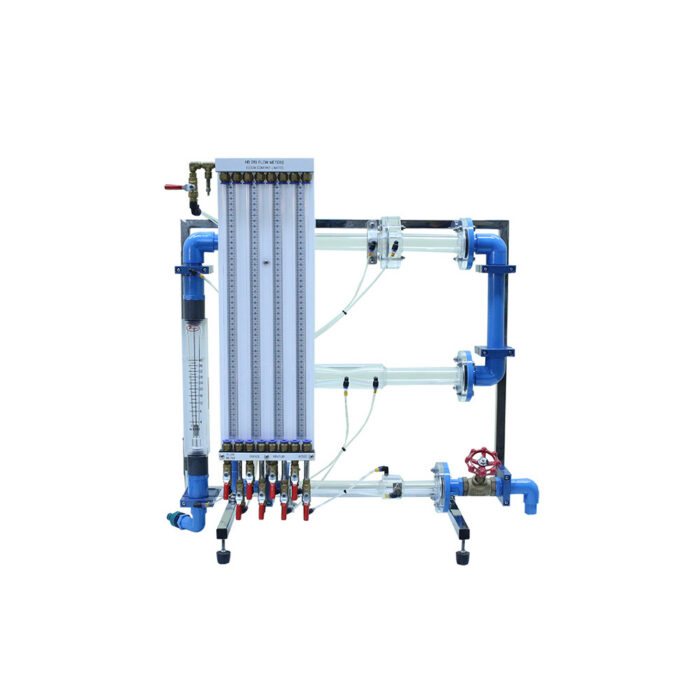

The equipment consists of a Venturi tube, an orifice plate, and a Pitot tube, made from a clear acrylic, connected in series. Pressure drop across each device is connected to a water manometer bank with a vent valve and a hand air pump.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Accuracy of different flow meters
- Losses and k value
- Calculation of the coefficient of discharge
TECHNICAL DATA
| Variable area flow meter | 1 ea. | |
| Venturi tube | 1 ea. | |
| Orifice plate | 1 ea. | |
| Pitot tube | 1 ea. | |
| Water manometer | 1 ea. | |
| Software for data display and analysis by computer (separately supplied). | ||
