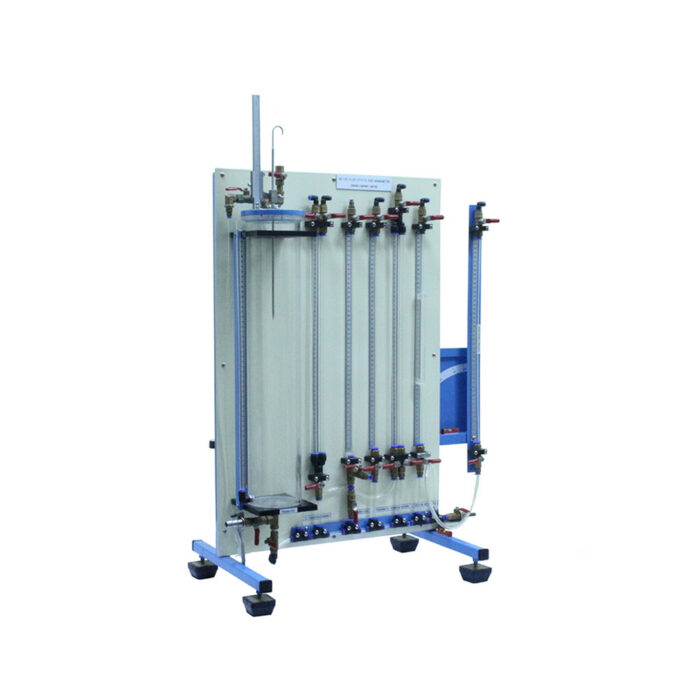

Fulid Statics and Manometry
This is a bench top apparatus for studying and measurement of liquid under hydrostatic conditions using manometers.
The apparatus consists of a transparent tank connected to various types of manometers and other measuring devices for measurement of level, pressure and differential pressure.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Head of liquid in manometer.
- Measurement of liquid level using scale with parallax principles.
- Liquid surface in tubes of different diameters.
- Measurement of change in liquid level using Vernier hook and point gauge.
- Measurement small change of liquid level using micromanometer.
- Measurement of differential pressure by single manometer.
- Measurement of small differential pressure using inclined manometer.
- Measurement of liquid differential pressure using inverted U-tube.
- Measurement of gas differential pressure using U-tube.
- Sensitivity of U-tube manometer due to liquid density.
- Pressure drop of fluid flow in pipe.
- Effect on trapped air on manometer accuracy.
TECHNICAL DATA
| Main reservoir tube | 100 mm inside diameter |
| Manometer measuring range | 0-450 mm. |
| Manometer tubes | 8 mm inside diameter |
| – 1 U-tube – 1 inverted U-tube – 2 vertical tubes – 1 vertical tubes with different cross section – 1 twin tube inclined manometer |
|
| Accessories – 1 tube lid – 1 gas bubble micro-manometer – 1 syringe – 1 hook and point gauge |
|
