Series and Parallel Pumps, Fixed Speed

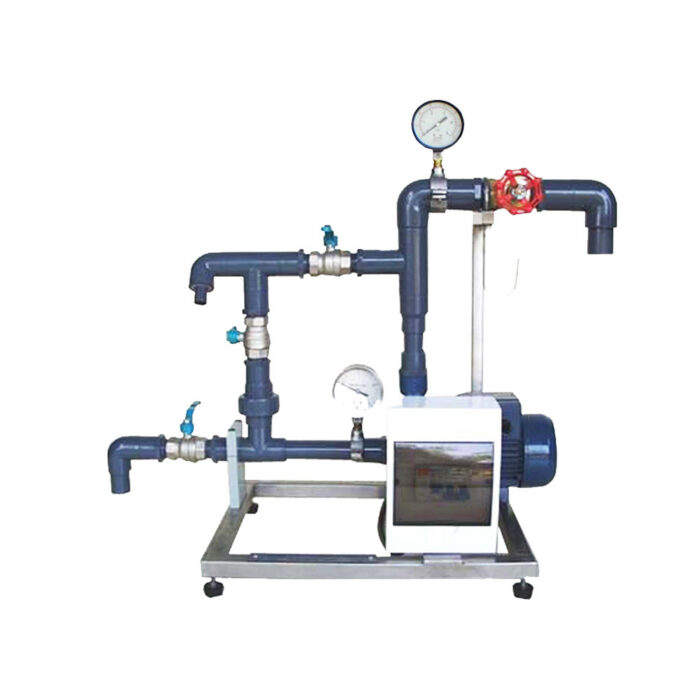

This equipment is designed to study head vs flow rate characteristics of two pumps connected in series or parallel. It is to be used with HB100 Hydraulics Bench (separately supplied)
A fixed speed pump is mounted on the Hydraulics Bench which acts as a service module. The Hydraulics Bench pump is used as a second pump. The two pumps are interconnected and by manipulating flow control valves, the pumps can be operated individually or both pumps in series or in parallel. Pressure gauges are installed at the pump suction and discharge. The pump draws water from the Hydraulics Bench storage tank via a suction hose with a strainer and delivers flow to the Hydraulics Bench measuring tank.
TECHNICAL DATA
| Pump ratings | : | Maximum flow rate 80 lpm and maximum head 18 m. water. |
| Pressure gauges | : | Suction and discharge. |
| Power supply | : | 220 V, 1 Ph, 50 Hz. |
| Net (unpacked) shipping dimensions WxLxH | : | 36 x 90 x 50 cm |
| Net weight | : | Approx. 18 kg |
