Pressure Measurement Apparatus
The apparatus is intended to introduce students to basic pressure measuring devices as well as pressure gauge calibration.

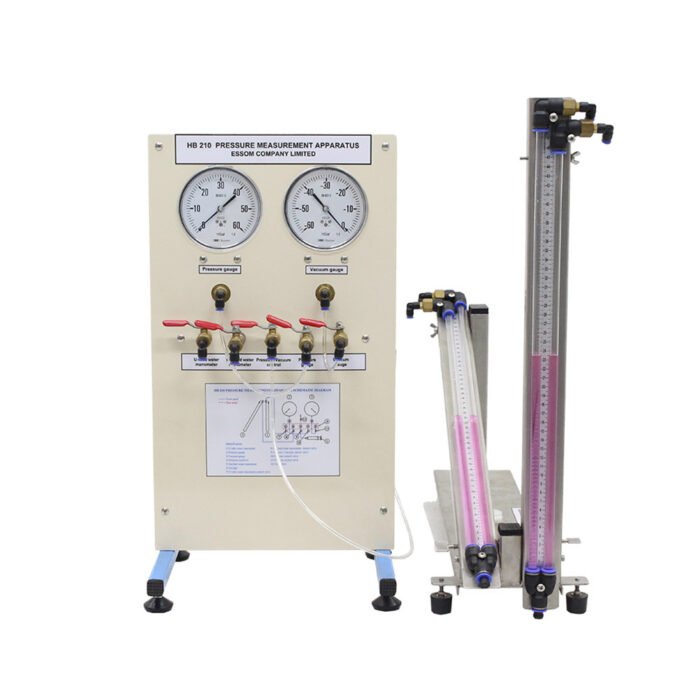

The apparatus consists of a U-tube and an adjustable inclined water manometers, pressure and vacuum gauges, and a syringe for generation of pressure and vacuum. A dead weight pressure tester is also included.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Familiarization with different pressure measuring devices.
- Comparison of water manometers with pressure and vacuum gauges.
- Comparison of U-tube and inclined water manometers.
- Calibration of pressure gauge.
TECHNICAL DATA
| Pressure gauges, 4 in. | 1 ea. vacuum. , 1 ea. pressure. | |
| Inclined water manometer | 1 ea. | |
| U-tube water manometer | 1 ea. | |
| Syringe | ||
| HB011 – Dead Weight Pressure Tester – Pressure – gauge – Piston – cross-section – Piston – weights – Calibration – weights |
||
| Software for data display and analysis by computer (separately supplied) | ||
