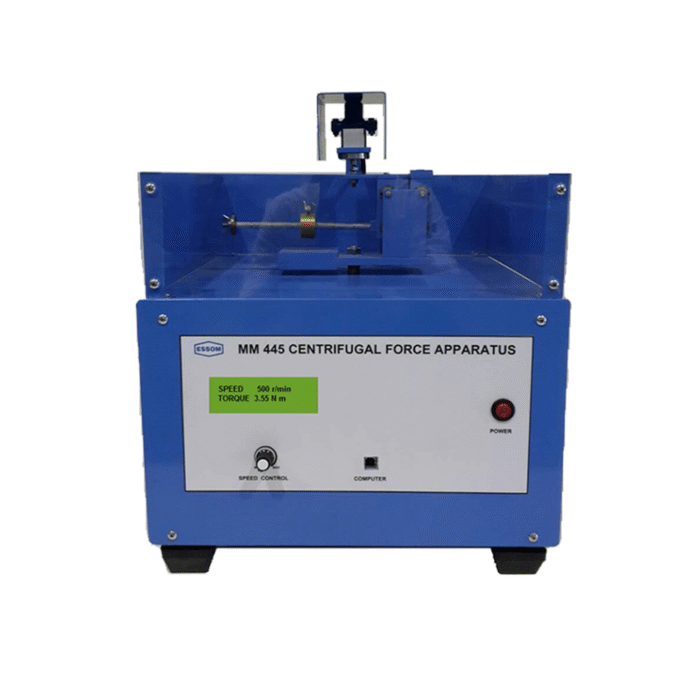

Centrifugal Force Apparatus, Computer Interface
The apparatus is used for studying the relationship between centrifugal force, rotating mass and its distance from the axis of rotation. Each factor can be investigated separately.
The apparatus consists of a drive motor with a speed controller, a frame for rotating arm, masses, and instruments for measurement of centrifugal force and speed. The frame is driven by a motor via a belt. The centrifugal force from a known mass on the arm is transmitted via a lever to a load cell located above the frame. A guard with transparent front is provided for safety.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Centrifugal force vs mass.
- Centrifugal force vs angular velocity.
- Centrifugal force vs radius.
TECHNICAL DATA
| Rotating radius | Up to 125 mm. |
| Rotating masses | 1 lot. |
| Rotating speed | 0-600 rpm |
| Measuring instruments | |
| – Speed and force | Digital display |

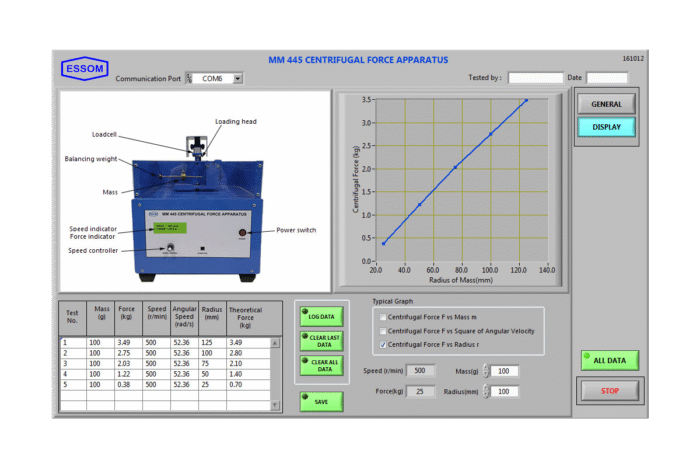

| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220 V, 1 Ph, 50 Hz. Other power supply is available on request. |
