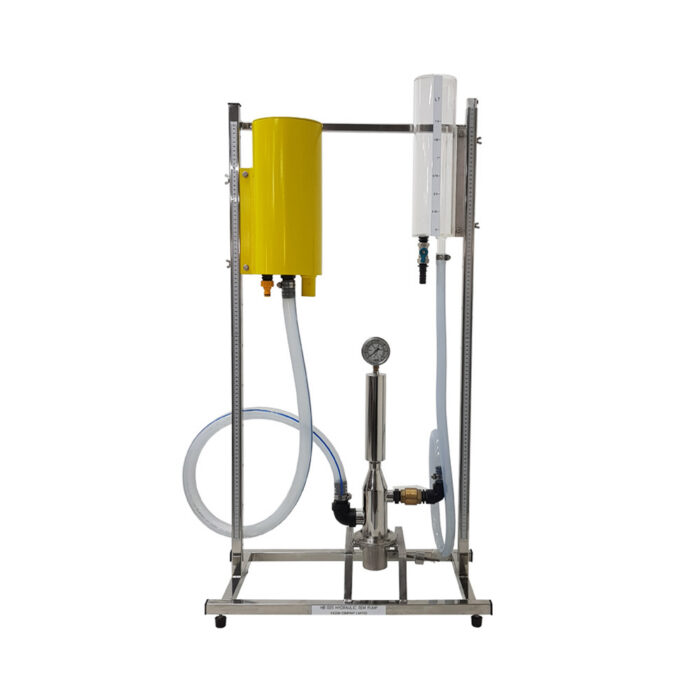

Hydraulic Ram Pump

The apparatus demonstrates the principle of a ram pump. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied).

Water from a Hydraulics Bench is supplied to a reservoir with an overflow pipe. Height of the reservoir is adjustable. Water from the reservoir is supplied to the ram pump which has two valves. One valve allows the water to discharge in adjustable pulse controlled by a counter weight. When this valve shuts, the pressure wave will push the water in the pump via a check valve through a non-return valve to the delivery pipe. Water is delivered to a clear graduated cylinder with an adjustable height. A pulse chamber is provided to smoothen the ram delivery.

TYPICAL EXPERIMENTS
  • Demonstration of the principle of a ramp pump
  • Determination of efficiency of the Hydraulic Ram
TECHNICAL DATA
Pump material Stainless steel
Graduated cylinder 1 ea.
Adjustable supply head Up to 1000 mm
Adjustable delivery head Up to 2000 mm
Software for data display and analysis by computer (separately supplied).
In Stock
100% Original and quality

Additional information

Brand

Essom
