Marcet Boiler for demonstrating the pressure–temperature relationship of saturated steam through a temperature-pressure curve in a compact tabletop unit.

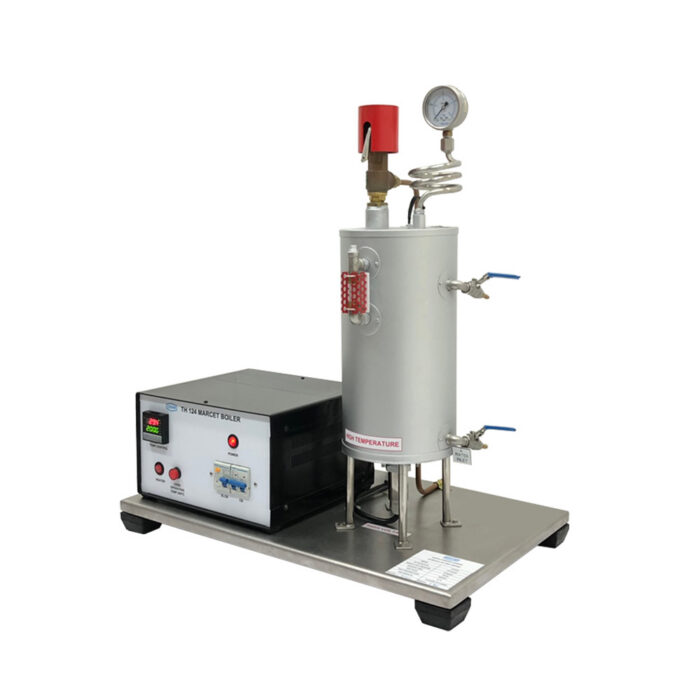

Marcet Boiler. This table top equipment demonstrates the relationship between pressure and temperature of saturated steam by temperature – pressure curve.

The equipment consists of an insulated boiler with an electric heater and inlet and outlet valves on stainless steel base with adjustable footings. Measuring and control instruments are provided.

Instruction manual is also included.

TECHNICAL DATA

Boiler
– Material	Stainless steel
– Heater	2 kW
– Maximum working pressure	15 kg/cm2 (1.47 MPa)
– Maximum operating temperature	200ºC
Measuring instruments
– Temperature digital display with limiter at 200ºC
– Pressure	Pressure gauge 0-20 kg/cm2 (0-1.96 MPa)
Accessories
– Pressure relief valve.
Software for data display and analysis by computer (separately supplied).
Power supply	220 V, 1 Ph, 50 Hz. Other power supply is available on request.
