Mini Axial Flow Impulse Turbine Demonstration Unit (Computer Interface)

Mini Axial Flow Impulse Turbine Demonstration Unit (Computer Interface) is a self contained mini axial flow propeller turbine for studying the turbine.

Mini Axial Flow Impulse Turbine Demonstration Unit (Computer Interface). This is a self contained mini axial flow propeller turbine for studying the turbine characteristics with data analysis by computer.

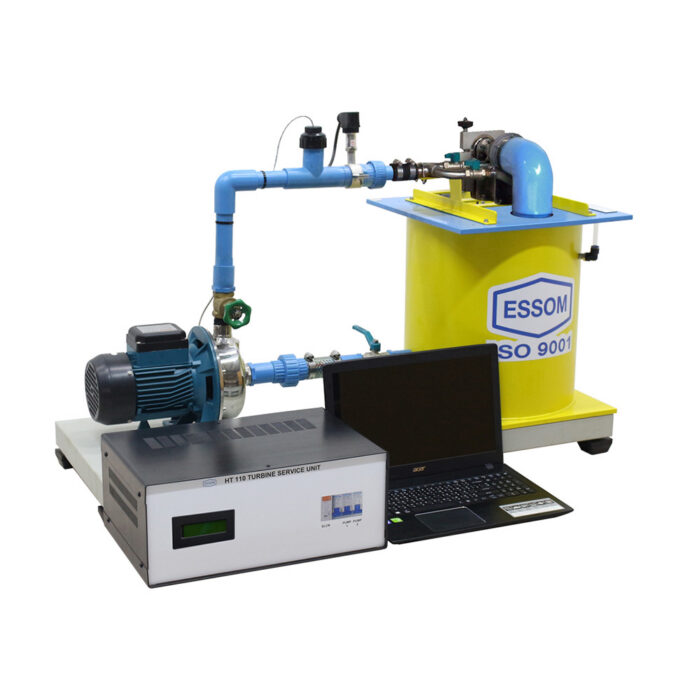

The unit consists of axial flow propeller turbine with a dynamometer, a water storage tank, a low head high flow centrifugal pump, an interface box and input power sensors and software.

The turbine fixed guide vanes direct water to the runner. The interface box includes power supply to the sensors and motor, and a computer interface unit. It also provides interface ports to sensors and computer.

Instruction manual is also included.

TYPICAL EXPERIMENTS

Torque vs speed at various heads and flow rates.
Power output vs speed for various heads and flow rates.
Efficiency vs speed for a given head and flow rate.
Racing characteristics.

TECHNICAL DATA

Construction	Metal runner, twin nozzles and casing with transparent discharge section
Ratings	Maximum power over 25 W
Dynamometer	Mechanical brake
Sensors with digital display	Sensors with digital display
Software for data display and analysis by computer (separately supplied).
