Pelton Turbine Test Set
This set is designed for studying Pelton turbine characteristics under various flow rates and heads.

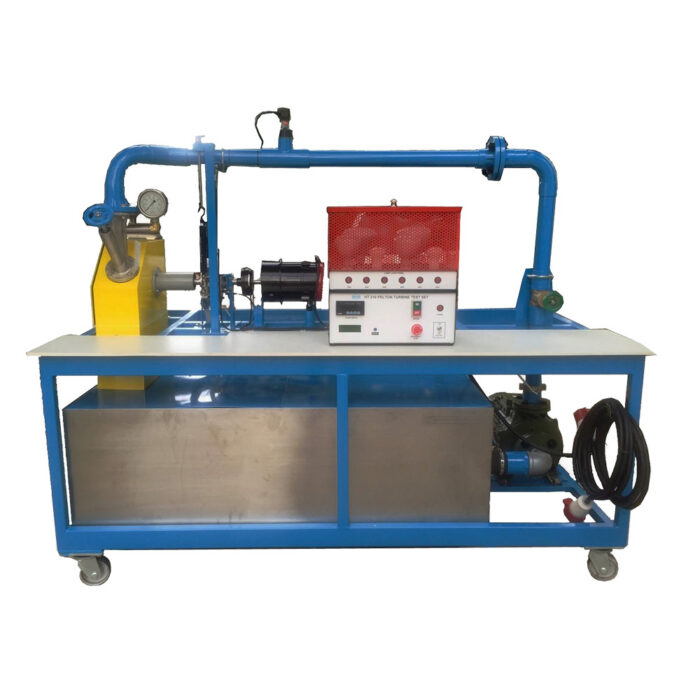

The unit consists of a storage tank, a pump, a turbine, a dynamometer, a generator, and measuring instruments. The adjustable nozzle directs the water jet to the runner buckets. Power output can be measured by either dynamometer or generator.
The unit is on wheels.
Instruction manual is also included.
TYPICAL EXPERIMENTS
- Torque vs speed at various heads and flow rates.
- Power output vs speed for various heads and flow rates.
- Efficiency vs speed for a given head and flow rate.
- Overall turbine generator efficiency.
- Racing characteristics.
TECHNICAL DATA
| Turbine | |
| – Construction | Stainless steel runner, nozzle and casing with transparent window to observe hydraulic action |
| – Ratings | Over 2000 W of brake power or over 1200 W of electrical power |
| Pump ratings | |
| – Motor | 7.5 kW |
| Generator | 1.5 kW, 220 V, 1 Ph, 50 Hz. |
| Electrical load | Lamp bank |
| Dynamometer | Water cooled stainless steel mechanical brake with anti splashing system |
| Measuring instruments: | |
| – Torque | Spring balance |
| – Pressure | Pressure gauge |
| – Sensors with digital display |
|
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 380 V, 3 Ph, 50 Hz. Other power supply is available on request. |
