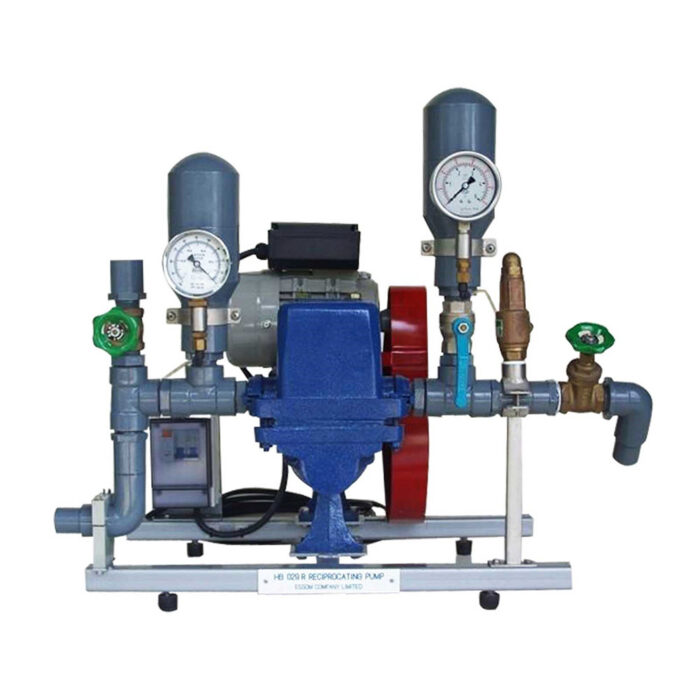

Reciprocating Pump
This equipment is designed to study reciprocating pump characteristics at various speeds. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied).
The pump and motor are mounted on the Hydraulics Bench which acts as a service module. An advanced inverter controls speed as well as indicating speed and input power. Pressure gauges and pulse chambers are installed at pump suction and discharge. The pump draws water from the Hydraulics Bench storage tank via a suction hose with a strainer and delivers flow to the Hydraulics Bench measuring tank.
TYPICAL EXPERIMENTS
Performance and characteristics of Reciprocating pump
TECHNICAL DATA
| Pump ratings | Maximum flow rate approximately 15 Lpm | |
| Maximum head approximately 30 m. | ||
| Pressure gauge | Discharge. | |
| Software for data display and analysis by computer (separately supplied). | ||
| Power supply | 220 V, 1 Ph, 50 Hz or as required | |
100% Original and qualityRelated products
-
AccessoriesYaskawa Standard Pendant
Standard Pendant Dimensions 152 mm (w) x 299 mm (h) x 53 mm (d) Pendant Display 5.7-inch full-color touch screen, 640 x 480 (VGA) Pendant Languages English, German, Japanese, Spanish, Chinese Pendant Weight .73 kg (1.6 lbs) Material Reinforced plastics Coordinate System Joint, rectangular, cylindrical, tool, 63 user-coordinate frames Windows® Menu-Driven Interface User-selectable touch-screen menu, multiple windows supported;one SD card slot; one USB port (2.0) Pendant O/S Windows Embedded Compact 7 Protection Rating IP54 Programming Programming Language INFORM III, menu-driven programming Robot Motion Control Joint motion, linear, circular, spline interpolation Multiple Device Control Parallel Start, Twin Synchronous, Multiple Group Combinations, Station Coordinated Moves (positioners), Bases (tracks and gantries) Programmable Logic Control Ladder monitor, ladder programming, I/F pendant display, address naming, expanded logic operands Maintenance Maintenance Functions System monitor, internal maintenance clocks Self-Diagnostics >Classifies errors and major/minor alarms and displays data; monitors reducers for predictive wear; alerts when major power components reach design life User Alarm Display Displays alarm messages for peripheral devices Alarm Display Alarm messages; alarm history provides instruction of how to repair fault I/O Diagnosis Permits simulated enabled/disabled input/output (0 reviews) -
Hydraulic Studies and AccessoriesBernoulli’s Theorem Apparatus
Bernoulli’s theorem is applied on flow through a clear acrylic Venturi tube. The apparatus is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied).
Static pressures at various points along the wall of a transparent Venturi tub are directly measured on a manometer equipped with a vent valve and a hand air pump. A movable stainless steel total head probe is also provided. Flow through the Venturi tube is controlled by a valve at the outlet. As a primary flow measuring device, coefficient of discharge for the Venturi tube can also be determined.
TYPICAL EXPERIMENTS- Application of the Bernoulli equation
- Measurement of the meter coefficient of discharge at various flow rates
- Comparison of experimental results with theoretical predictions
TECHNICAL DATADiameters 28 mm inlet. Taper Upstream 21°, Downstream 10° Water manometer 8 tubes. Total head probe 1 ea. Software for data display and analysis by computer (separately supplied). (0 reviews)
