Single Cylinder Engine Test Bed: Electric Generator Absorber
This is a small test bed for a small gasoline or diesel engine. The engine is connected by V-belt with a safety guard to an electric generator absorber dynamometer on the test bed. Heat from the generator is dissipated by…
This is a small test bed for a small gasoline or diesel engine.

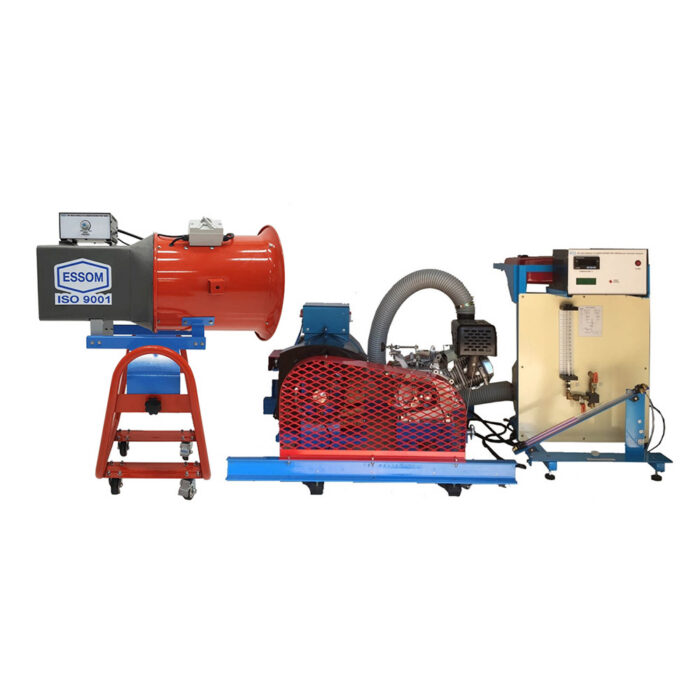

The engine is connected by V-belt with a safety guard to an electric generator absorber dynamometer on the test bed. Heat from the generator is dissipated by heaters with a fan. Control of the generator load is by manual switches and of the engine throttle are manually controlled.
A fuel tank and air box are on a stand next to the engine.
Instruments are provided for measurement of engine speed, generator speed and torque, fuel flow rate, air flow rate, and temperatures.
Instruction manual is also included.
- Torque vs engine speed at various throttle setting.
- Engine brake horsepower and efficiency vs. speed.
- Specific fuel consumption
- Air/fuel ratio
- Volumetric efficiency
| Generator capacity | 7 kW. |
| Load | Heaters and fan. |
| Engine | Single cylinder gasoline engine, up to 5 kW or as required. |
| Measuring instruments | |
| – Sensors with digital display |
|
| – Fuel flow rate | Graduated cylinder and stopwatch. |
| – Air flow rate | Air box with pulse reducer, orifice plate, and inclined water manometer. |
| Software for data display and analysis by computer (separately supplied). | |
| Power supply | 220 V, 1 Ph, 50 Hz. Other power supply is available on request. |
| Brand |
Essom |
|---|
