Solid-State Reduced Voltage Starters
Solid-State Reduced Voltage Starters guides trainees through installing, operating and troubleshooting solidstate starters used in electric motor circuits.
Solid-State Reduced Voltage Starters guides trainees through installing, operating and troubleshooting solidstate starters used in electric motor circuits.
Solid-State Starters is an add-on to Electromagnetic Motor Starters (EA07), covering five additional skills. The skills-based curriculum presents hands-on activities using industrial-grade components mounted on the included Flexponent® panel.
Included
Order:

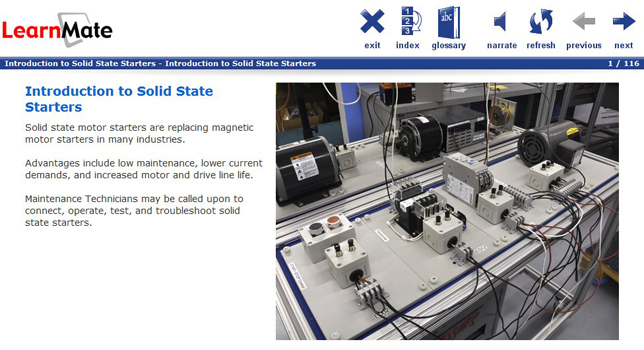

LearnMate® E-learning Content: Solid-State Starters (EA11) Teachers Guide
Flexponent® panel:

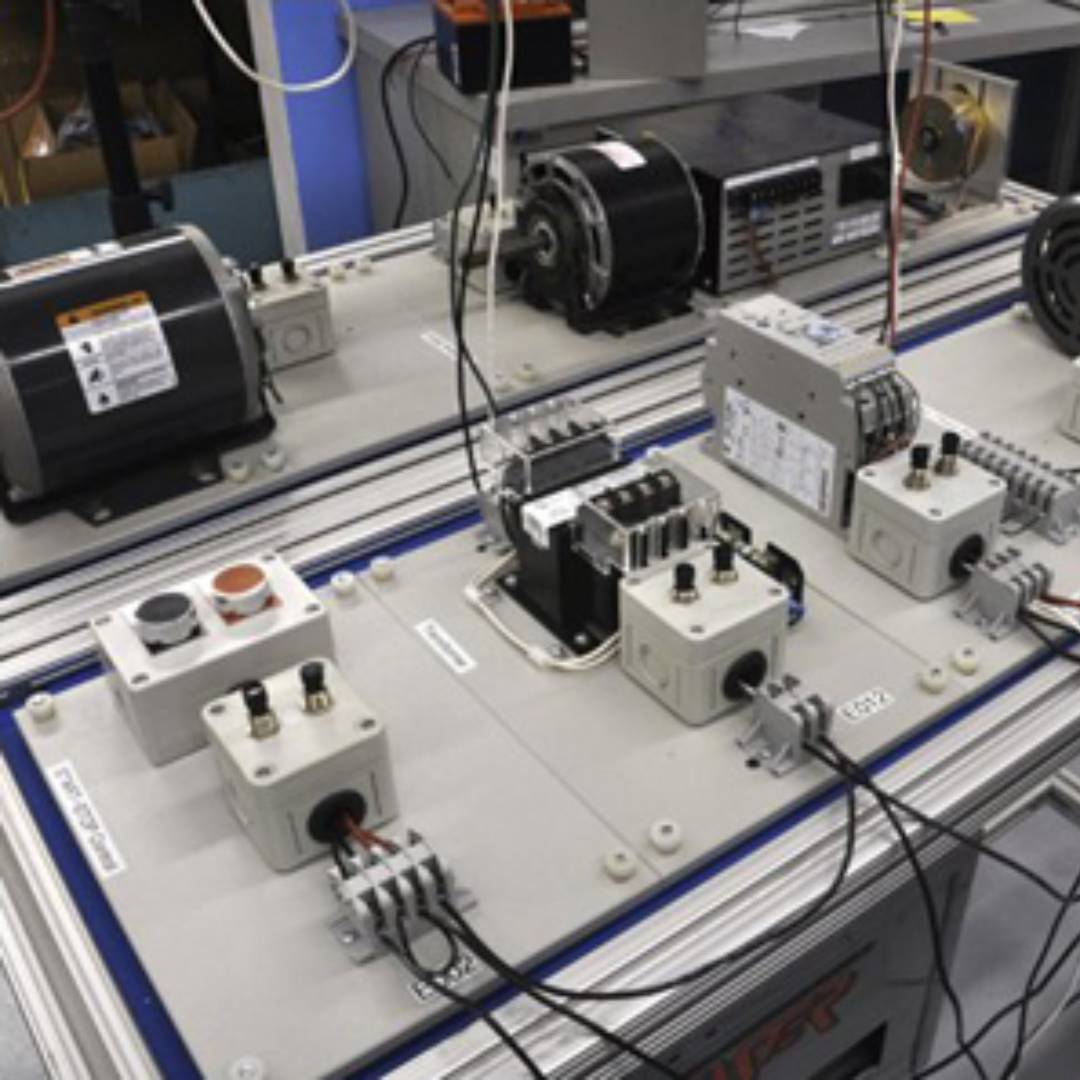

Panel E024: Solid-State Starter
Requirements
(sold separately)
JobMaster® Learning Station
Power Control Panel (220V) 3-Phase
Digital multimeter (Fluke Model 115 or equivalent)
AC clamp-meter (Fluke Model 322 or equivalent)
Prerequisite courses:
Electric Motors
Course Outline
Skills Acquired
Skill 1: Applying Solid-State Principles
Skill 2: Connecting and Operating a Solid-State Starter
Skill 3: Adjusting a Solid-State Starter
Skill 4: Testing Solid-State Starters
Skill 5: Troubleshooting Solid-State Starters
Specifications
Hardware Specifications
Panel E024: Solid-State Starter
Panel type: Single
1 Solid-state soft starter, 1/2HP, 100-240V control
voltage, 200-208V 3PH, 3A output
2 Fault switch, 4A, 250V push-on/push-off momentary
